LED Lamps and Modules

Description

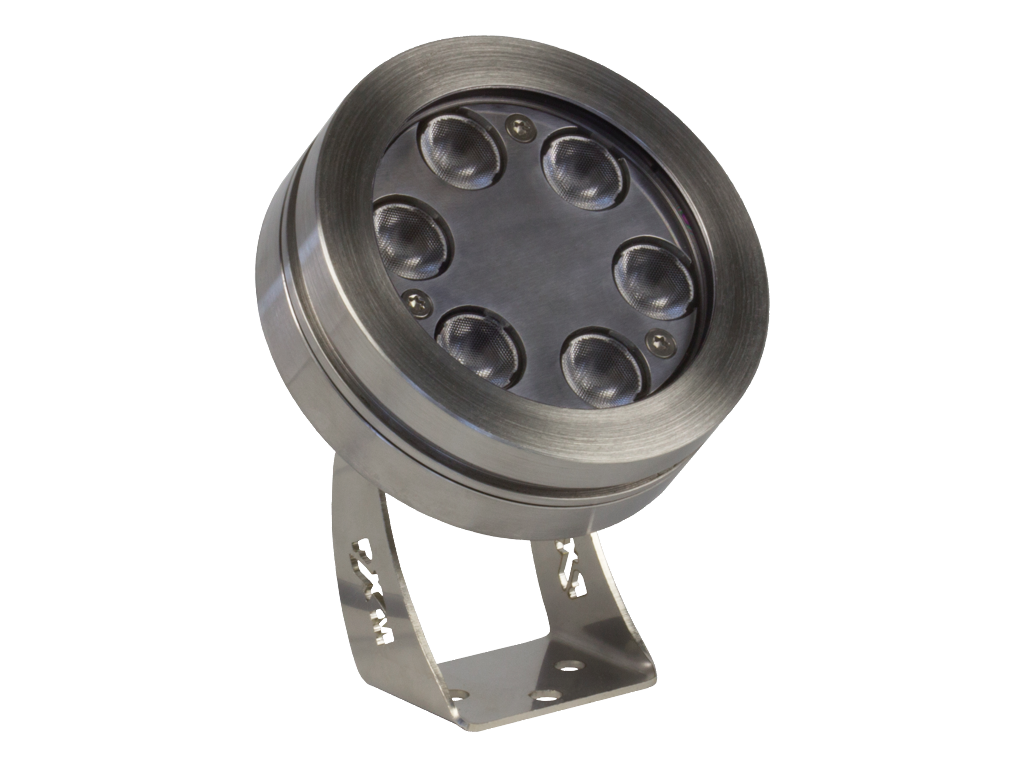

PxAqua 6 LED lamp 12-24V SH is designed for underwater lighting. It can also be used to illuminate the interior and exterior architectural details.

The lamp uses six high-power LEDs from OSRAM Oslon. The LEDs are available in different color temperatures: 2700K, 3000K, 4000K, 5000K, 6500K. The lamp may be provided with optics of lighting beam angles 10°, 25° (standard) or 50°. The casing is made of stainless steel (316L), and provides protection class IP68.

The device is provided with a two-meter cable.
The PX373 may only be powered from 12 or 24V DC using voltage LED drivers or voltage power supply. In case of using a voltage driver e.g. PX254, PX282 or PX370, it is possible for dimming of this product.

Technical data

beam angle25° (typical), 10°, 50°
available LED colours2700K, 3000K, 4000K, 5000K, 6500K
housing IP CodeIP68
maximum current consumption600 mA for 12V DC
300 mA for 24V DC
housing material1.4404 stainless steel
power supply12 - 24V DC
weight0,77 kg
dimensionsdiameter: 84 mm
height: 27 mm
height with the case foot: 91 mm
