Exhibition lighting

Description

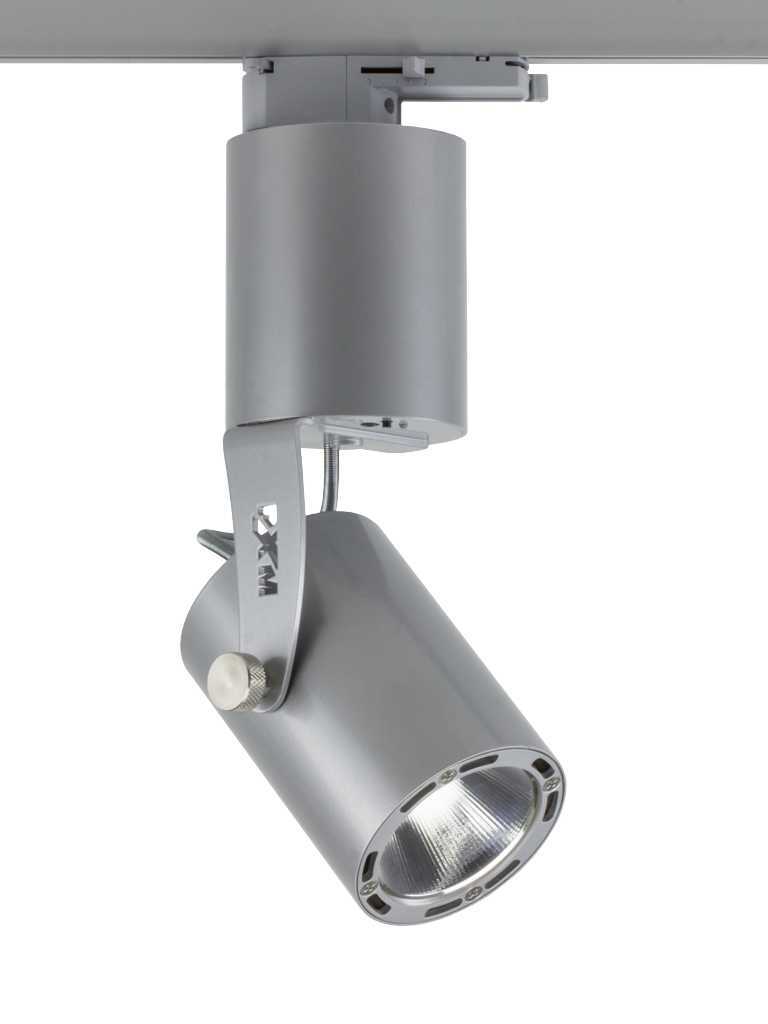

PX803-T is a professional LED illuminator designed to illuminate museum or exhibition displays.
By using semiconductor light sources SSL LED COB type and advanced control electronics, a high-class illuminator has been created that meets very high requirements concerning museum and exposition lighting. Its most advantages include the total lack of ultraviolet radiation, trace amounts of infrared radiation, very high CRI color rendering index, high brightness and low energy consumption. Modern electronics allowed to create a lamp that is devoid of the effect of "light vibration" (flicker free technology) in the full control range, which makes it useful in the television industry.
The device features a base which allows for mounting it in GLOBAL Trac ® Pulse Control bus bars, provided with an additional control line.
An individual address assigned to each lamp allows to adjust its brightness independently of the settings of other lamps. Thanks to the button placed on the housing, it can also be manually controlled (e.g. in case of connecting the lamp to bus bars without a control line).
The lamp uses a highly efficient LED diode and an effective control system, thanks to which the lamp emits a small amount of heat.
The lamp housing allows to change the lighting direction in two axes.

Technical data

number of LEDs 1 (COB)
beam angle15°, 36°, 51°
total luminous fluxPX803-T-XL-15-930: 2443lm
PX803-T-XL-36-930: 2435lm
PX803-T-XL-51-930: 2417lm
fixingGLOBAL Trac ® Pulse Control
RDMYES
power supply230 V AC
weight1,3 kg
dimensionswidth: 107mm
height: 276mm
diameter: 87mm
