Description

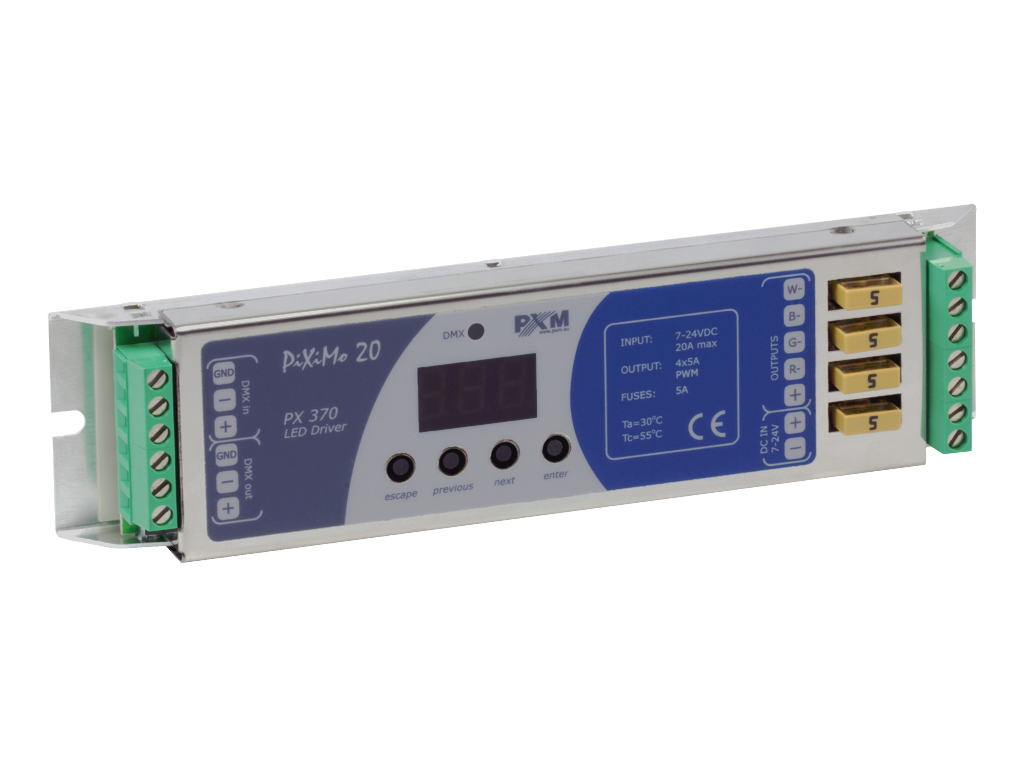

PX370 driver is designed to control the LEDs. Built-in DMX receiver allows to control 4 DMX channels (R, G, B, W) directly with the DMX protocol. Wide range of power supply voltage and high current carrying capacity outputs (5A) permit a control of large quantities of LEDs. What is more the PX370 has built-in fuses that can be replaced by the user by himself.

PX370 can be either controlled by DMX, and act independently. In this case, the user is offered a fully programmable scene and 18 pre-programmed sequences, which can also freely change the playback speed and fluidity changes in steps. By using 16-bit resolution control of each channel is completely smooth. In addition, the PX370 driver gained control mode called effect mode to control the programs built into the driver and the simultaneous change the settings of parameters such as speed, brightness and fade using DMX-512 signal sent from the external controller.

The driver has a built-in tuning frequency signal system ("flicker free" technology), which makes it particularly useful in applications for the television industry.
The PX370 is produced in common anode version - it allows LEDs connection on common anode.
