Description
CAUTION!THE DEVICE IS OUT OF PRODUCTION!

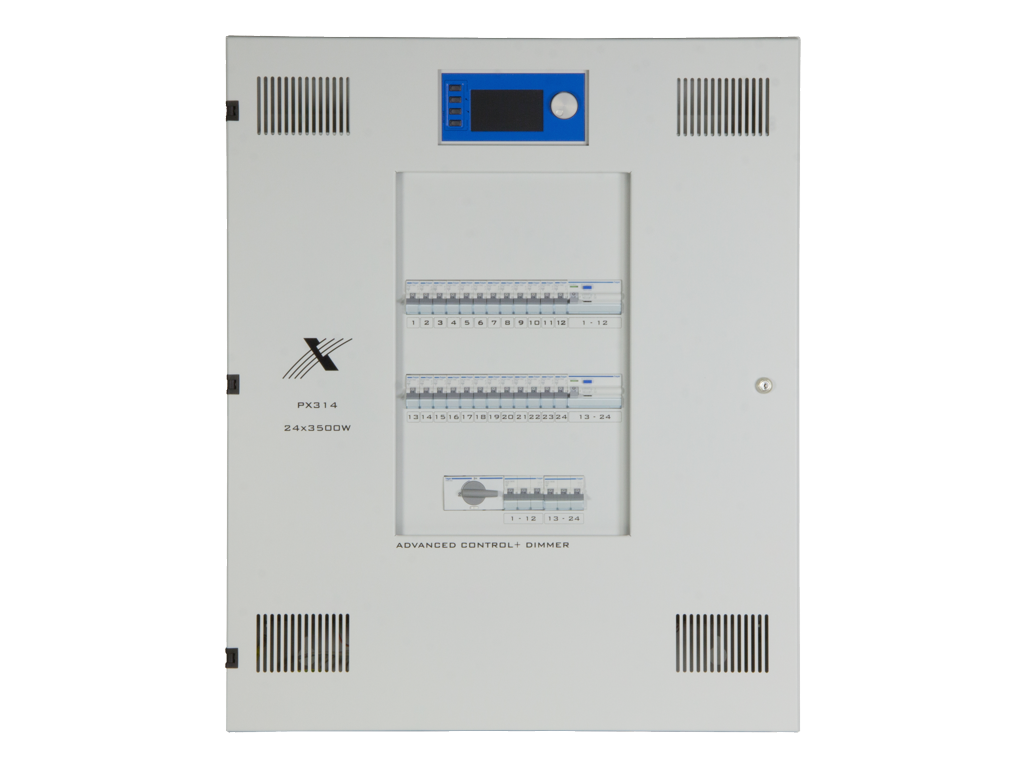

PX314 AC+ Dimmer 24x 3600 W can be powered by three phases, and has an integrated system fully protecting against the effects of reverse phases connection.
The device allows you to control 24 independent channels with a power of 3.6 kW each. The dimmer enables you to control input signals from 6 different sources simultaneously, including:
-
2 DMX-512 lines,
3 Art-Net lines,
24 analogue inputs (option available to order).
The device is equipped with the bulb heating system (10 levels) and control of the attached fuse and broken circuit / burnt bulb. In addition, the user can define the dimmer response to the lack of the driving signal. In addition to the basic options (ON, OFF, HOLD, SLOW TURN OFF), 64 stages and the program are available to be defined.
The integrated "PLL", "soft-start", "soft-on" and "even-off" systems assure reliable operation in the most extreme conditions. Direct detection of zero of the network and optical insulation of DMX input guarantee high resistance to interference. The device is equipped with an electronic measurement of current on each channel, current of the entire dimmer, voltage at individual phases of the power, voltage frequency, and temperature (separately for 2 groups of 12 channels). The dimmer is protected against reverse connection of phases, has thermal protection and temperature control fans inside. Each group (12 circuits) has a circuit breaker.
Each circuit has a16 A fuse breaker (characteristic C), circuit and overload protection. On request, each output circuit can be equipped with a fuse-breaker. The dimmer is equipped with a touch screen, 4 keys and a knob with which you can define all the parameters of the device. In addition, there is available an application to Windows, OSX and Linux, which allows you to set all the parameters and monitor the status of multiple PX314 devices connected to one network. The device is produced in the housing for wall mounting.
