Description

The PX710 DMX Controller is an advanced architectural lighting controller that allows for controlling even the most complex lighting systems.
With programmable functions, the device enables the control of lighting, multimedia, and other devices that are operated based on the DMX protocol. After the configuration, the controller operates independently.

The controller has 2 DMX output lines (1024 channels) and it allows for triggering multiple configuration items at the same time. Events can be triggered by an astronomical clock, a real time clock, programmed timers, analogue or digital inputs, mobile device applications or via the Modbus protocol.
It is possible to include additional extension controllers (up to 16 DMX output lines).

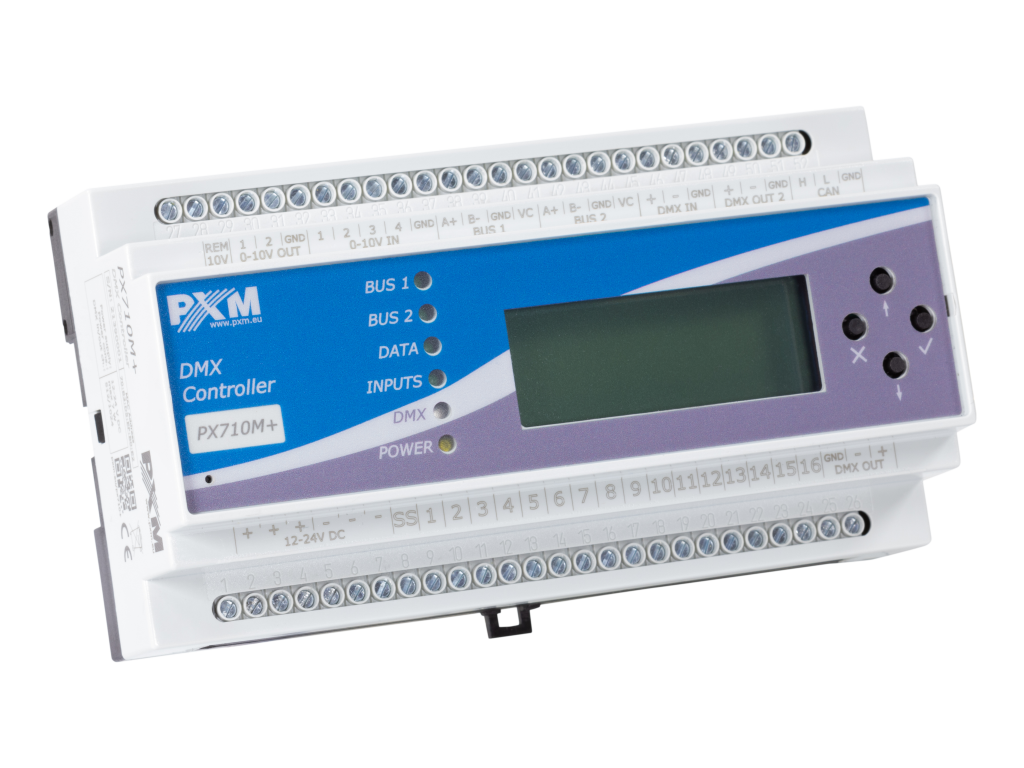

The PX710M+ has a screen and buttons, so user can read the basic operating parameters. Thanks to the BUS1 and BUS2 buses, the device can be extended with additional PX723 Keyboard 8, PX734 Light & Movement Sensor and PX778 Extension module 8ch modules. Two independent buses can be connected in series with max. 32 modules each (max. 64 modules in total).

An advanced PC application (Windows®) allows for programming the device. The application has a built-in library of devices that can be distributed on a graphic project, which facilitates the creation of complex light shows.

Tutorials for PxDesigner are available on YouTube.

The controller comes with an application for mobile devices (Android™, iOS) which enables simple control.
The controller can be used to create up to 16 users with different access rights. There is an option to remotely log on to the controller from the external network.

The PXM company provides a program for operating the controller on mobile devices:
