Description

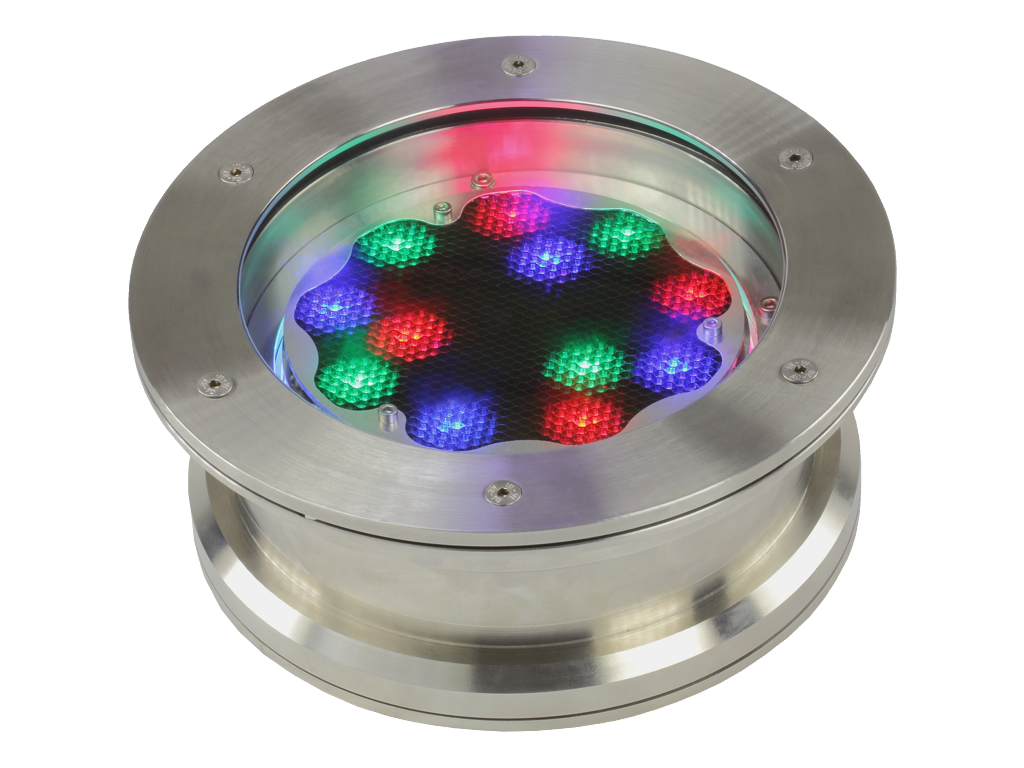

The Px318 lamp uses high-performance OSRAM Oslon LEDs. They are divided into three groups.
The product has built-in a baffle against the unpleasant glare effect. It slightly reduces the beam angle of output light, but gives the opportunity to use the lamps in applications where light quality and all the accompanying phenomena must be at the highest quality.

Another advantage of the PX318 is the ability to change the angle of the LED module inclination inside the lamp without moving the entire lamp housing. This allows to change independently the luminous flux direction (to within +/- 10°) to the mounted housing.

The lamp requires a 24V DC power supply, the control can be done using voltage drivers such as Px254 or Px282. Finally, the product is equipped with a LEDs power-limiting circuit depending on temperature. After reaching a temperature of 55°C it starts to reduce the current supplied to the LEDs and at a temperature of 80°C they are totally switched off. This solution allows for long-life and trouble-free operation of the product.
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
