Description

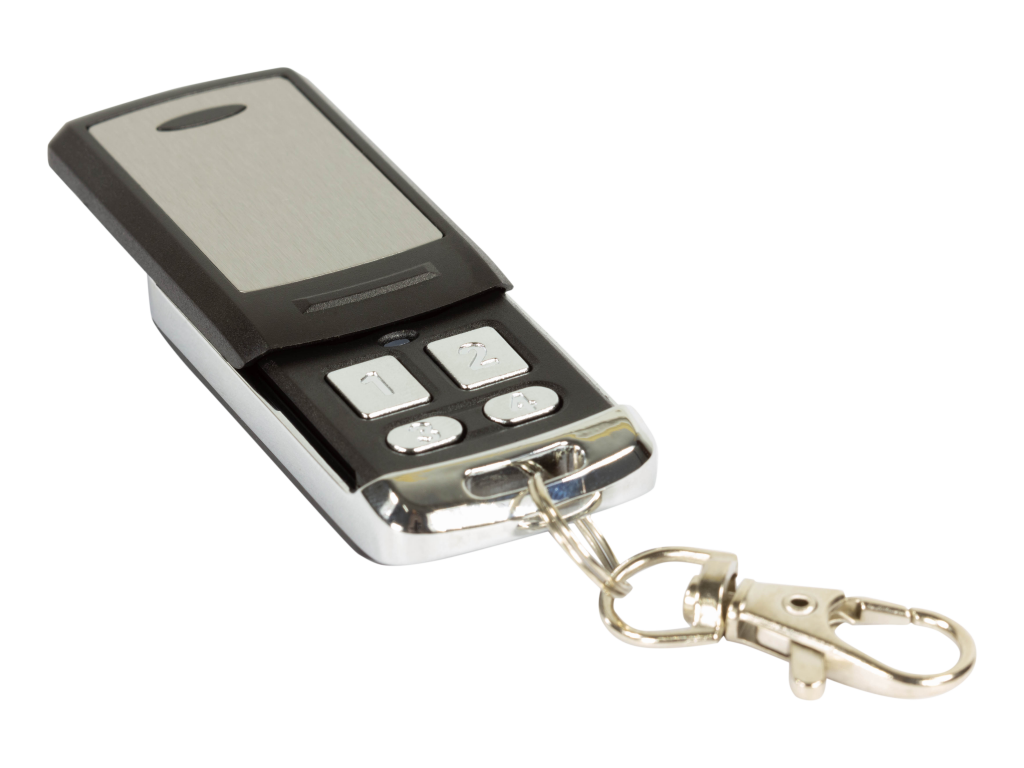

The PY516 is a four-button remote with high durability and increased range. The keyboard is protected against accidental pressing of the keys with a sliding cover made of stainless steel.
The transmitter is powered by a standard 3V battery (CR2032). Transmitter 4ch P can work with any sA series receiver.
The transmission is coded and is based on a variable code, which ensures high security when using wireless systems. Each transmitter has an individual code, and the receiver only reacts to signals that are received from the pilots entered into its memory. PY516 can be assigned to an unlimited number of receivers.

Technical data

operating frequency433,92 MHz
transmission power≤ +6 dBm
operating distance range150m – receiver with H1 module
300m – receiver with H2 module
the range given is for open space
cooperationany sA series receiver
power supplyCR2032 3V battery
weight0,01 kg
dimensionswidth: 30mm
height: 58mm
depth: 13mm
