Description

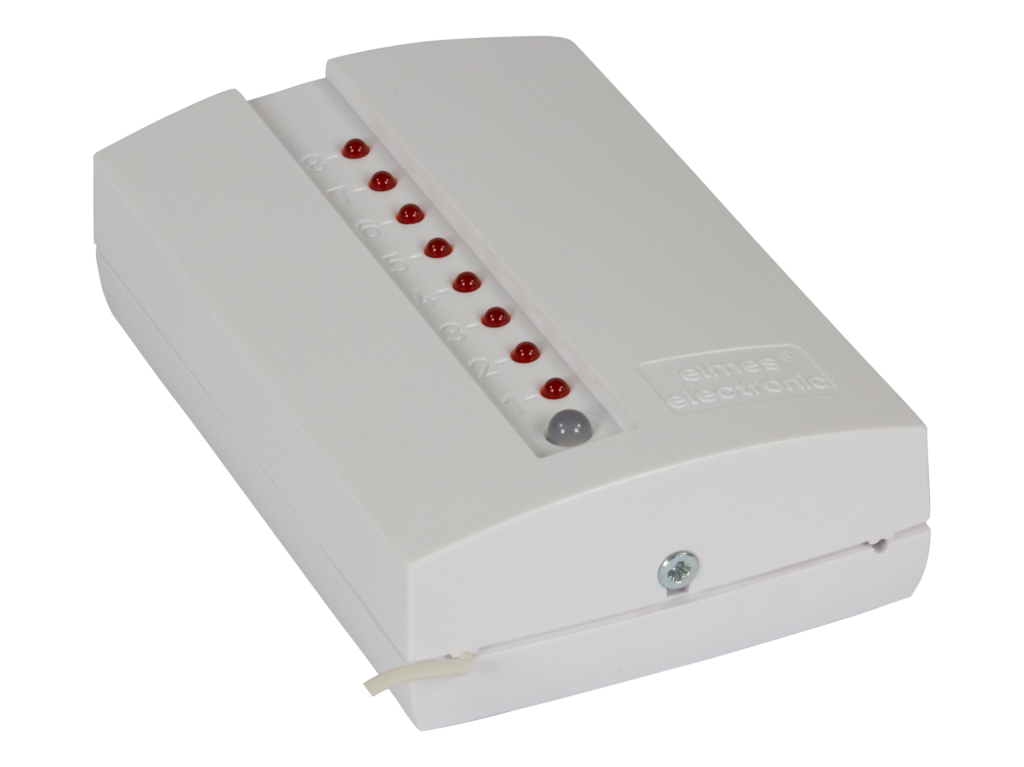

PY512 is an 8-channel radio receiver designed for installation in closed rooms. Each channel, which works as a relay, can work in one of two modes. To work with PXM devices one should set monostable (momentary) mode.
The receiver has 8 NO (normally open) or NC (normally closed) outputs galvanically separated and 8 LEDs indicating output activation. The device has the option of signaling the battery discharge in PTX, GBX, CTX, RP transmitters and opening the housing (anti-tampering function) and the lack of communication with PTX, GBX, CTX4H detectors.
Receiver 8ch works with all transmitters and remote controls from Elmes Elektronik operating in the 433.92MHz band (also with the RP501 transmitter). The transmission is coded and is based on a variable code, which ensures high security when using wireless systems. Each transmitter has an individual code, and the receiver only reacts to signals that are received from the transmitters stored in its memory (up to 40 buttons).
The receiver is powered by 12V DC safe voltage, and its plastic housing has been designed in such a way that can be mounted on the wall.
