Description

A splitter, a DMX signal distributor, allows for the creation of branches in extensive DMX installations.
Connecting a large number of receivers in series can be troublesome, which is why the possibility of creating branches of the DMX track using a splitter was created.
With the PX949 you can split the input DMX signal into 4 independent branches. The individual output lines are galvanically separated from both the input and from each other. The splitter can operate in three modes:

• filtering – incoming RDM packets are discarded and the output DMX signal is completely regenerated with the following parameters:
  • Break – 320μs,
  • MAB – 30μs,
  • MBF – 10μs,
  • WAIT – 200μs,
  • the number of sent channels is 24 – 512 depending on the number of input channels – PX949 recognizes how many DMX channels are received,
• bypass – the output signal is exactly the same as the input signal – RDM is not supported,
• normal – the splitter allows for bidirectional transmission of RDM packets.

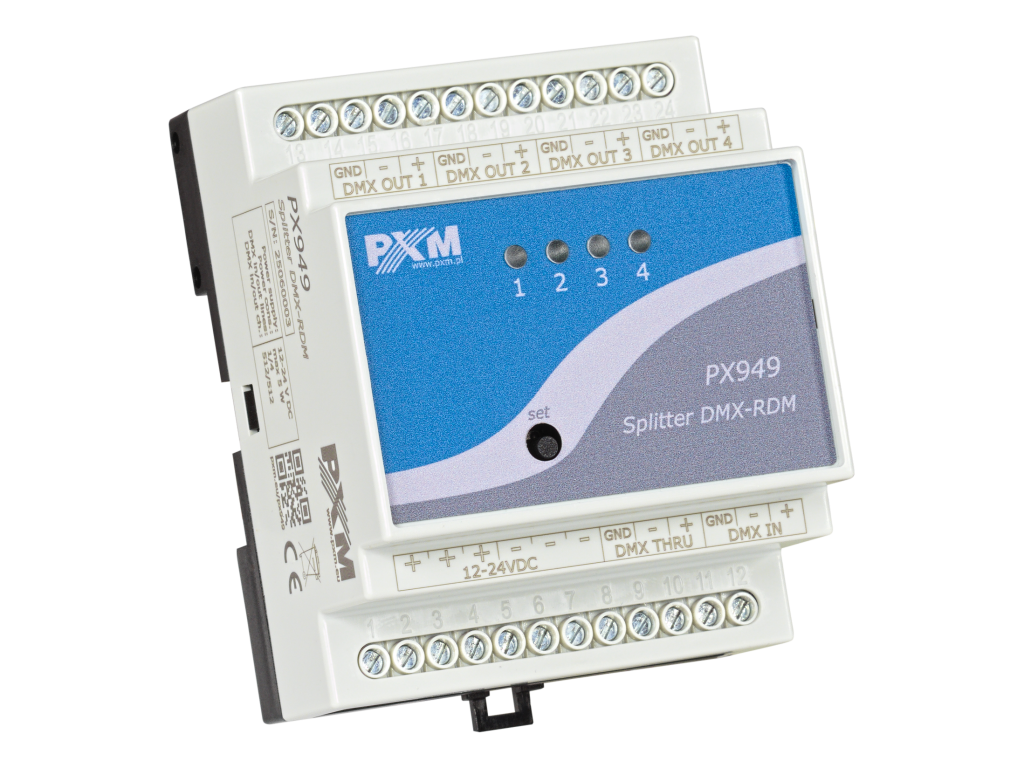

The DMX-RDM splitter is manufactured in housing adapted for mounting on standard 35mm DIN rails.
