Description

PX914 is a professional modular dimmer with rack mounting. Up to 24 modules divided into 4 groups (up to 6 modules in each group) can be installed in the cabinet. Each group can have 4 x 3000W or 2 x 5000W modules (one type within the group).
The device is powered from three phases. The dimmer allows to control from 5 different sources simultaneously:

• 2 x DMX-512,
• 3 x Art-Net / sACN.

The Modular Advanced Dimmer is equipped with a touch color display, 4 – 8 buttons and a knob. Using the buttons and the knob, you can easily navigate through the intuitively prepared menu, where you can set all the parameters of the dimmer and view its status.
PX914 has a built-in signal merging system with the possibility of selecting one of 13 priorities, including switching on any circuit permanently, regardless of the control. Advanced electronics allow for individual addressing of each output channel and graphic editing of the control characteristics (5 default characteristics and 5 user-set characteristics). The modules have switches (On / Off) at each of the outputs that allow to manually switch the output to 100% (the so-called Bypass) – the supply current flows directly to the output, bypassing the regulator circuit.
The dimmer also allows to set the limits of output voltages and currents for each channel separately. It is also equipped with a bulb heating system (10 levels) and control of the attached fuse and broken circuit / blown bulb. Reaction to DMX signal loss can be defined by the user. In addition to the basic options (ON, OFF, HOLD, SLOW TURN OFF), there are 64 scenes and a program to define.
Built-in "soft-start", "soft-on" and "even-off" circuits ensure reliable operation in harsh conditions. Direct grid zero detection and optical isolation of the DMX input guarantee high noise immunity.

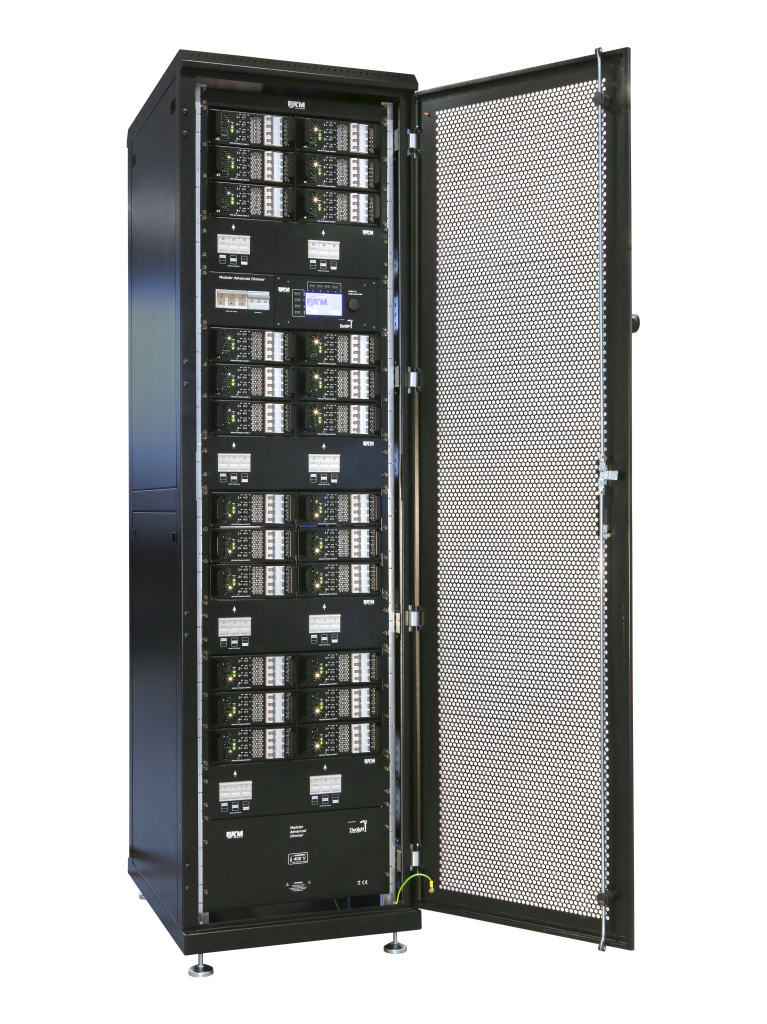

PX914 is a durable free-standing rack cabinet, and each module has a metal housing with an efficient cooling system.
