Description

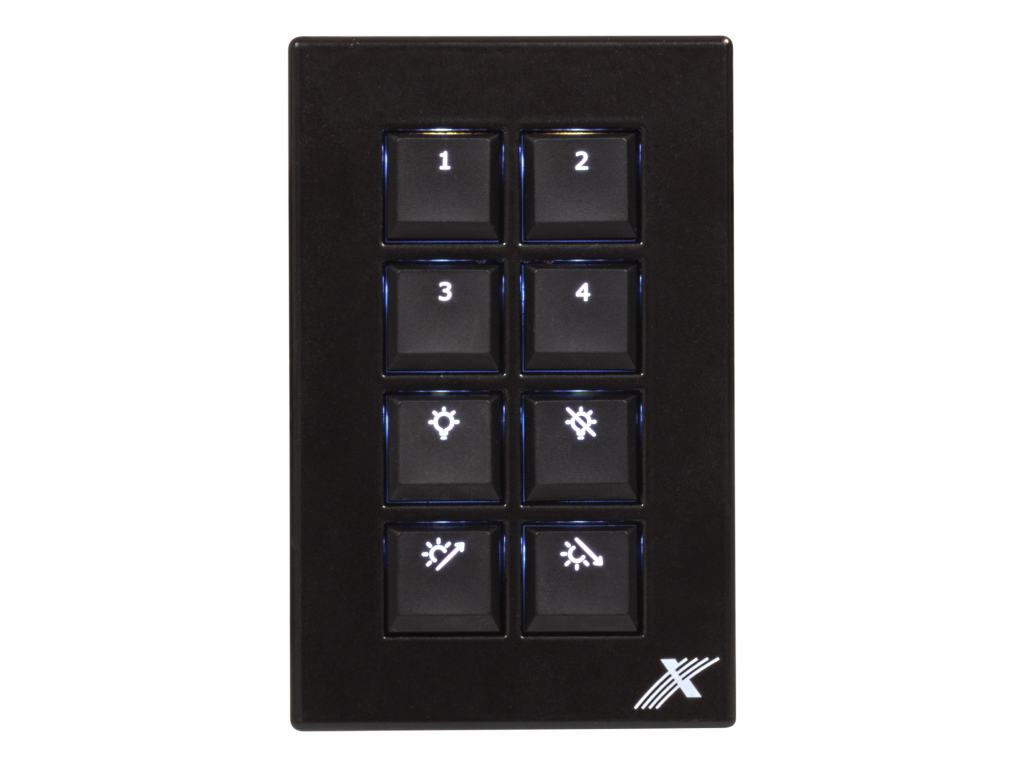

PX846 is a dedicated keypad for cooperation with the controllers PX710 / PX710+ and PX340 / PX340+. Keyboard 8 expands the system with 8 digital inputs in the form of buttons.
The device connects to PX340 / PX710 controllers using a connector, which is the Keyboard Hub PX725. In PX710+ and PX340+ controllers, the additional Keyboard Hub PX725 device is not required.
Each button can be burned with a symbol specified by the customer (available symbols can be found in the data sheet or in manual).
Each button of PX846 has a LED indicator with adjustable brightness. Its state is controlled by the controller, and the configuration is carried out with the use of the program PxDesigner (available for free download on producer’s website). Moreover, pressing the button can be signaled with the short acoustic signal.
It is possible to connect 64 devices (max. 32 per one line) and they should be connected in series.
The PX846 is made of aluminum and the housing allows for easy mounting in a standard electrical box.
