LED Lamps and Modules

Description

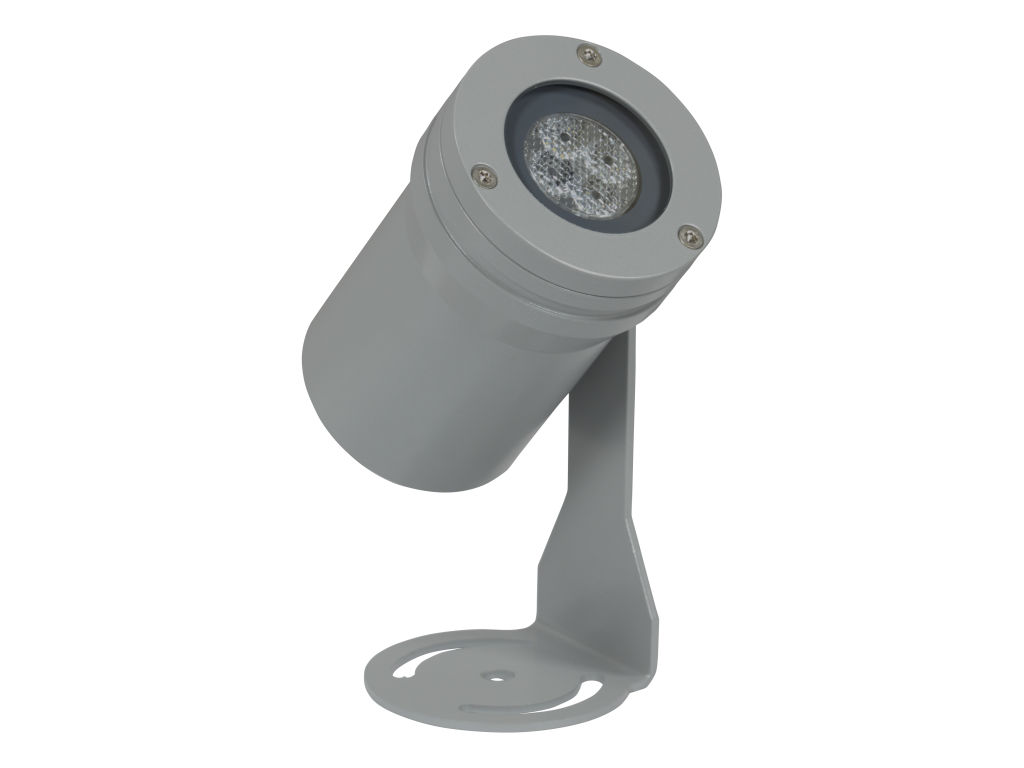

The PX837 lamp is a device powered by 24V DC. The lamp uses efficient LEDs that can be controlled using the DMX protocol. They provide many color variants and achieve different brightness. The device is produced in the RGBW version or with white diodes of a selected color temperature (or Dynamic White). The lamp can be equipped with lenses with light beam angles: 10°, 25° or 40°. PX837 is placed in an aluminum housing ensuring tightness at the IP65 level.
A dedicated device for the lamp is the LED Lamp Splitter (PX838).

Technical data

number of LEDs 4
available LED coloursRGBW
beam angle10°, 25°, 40°
control protocolDMX / RDM
housing materialaluminum
housing IP CodeIP65
power supply24 V DC
current consumptionmax. 0.27 A
weight1,1 kg
dimensionslenght: 135,5mm (with handle)
diameter: 59mm (lamp)
