Exhibition lighting

Description

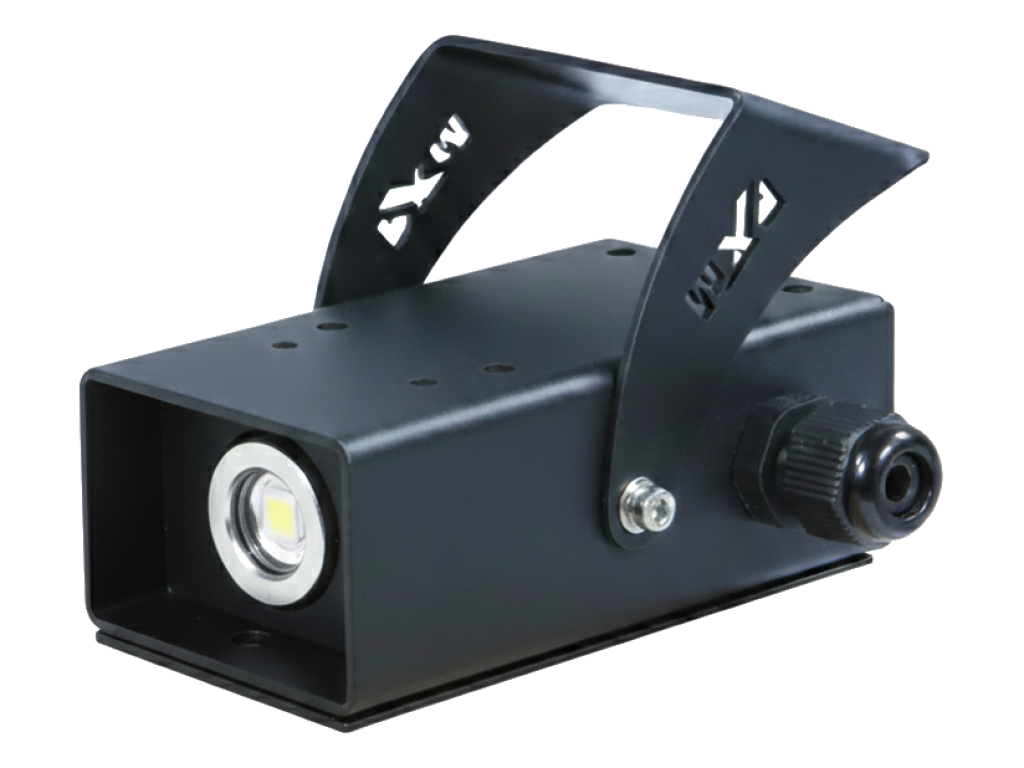

The PxArt Mini is a miniature LED lamp designed for illuminating museum displays and architectural details. The light source is a single high-efficiency white LED.
The "K" version has a framing cap. The lamp operates at a current of 350-700 mA. It has two cable entries, and the wires are connected internally.
Three housing colors are available:
  • white,
  • gray,
  • black,
four different color temperatures:
  • 2700 K,
  • 3000 K,
  • 4000 K,
  • 5000 K,
and three different beam angles:
  • 15°,
  • 30°,
  • 60°.

Technical data

power supply350 mA – 700 mA
color temperature2700K, 3000K, 4000K, 5000K
beam angle15°, 30°, 60°
CRI80, 90 (on order)
total luminous fluxfor 4000K and CRI 80: 230 lm
housing IP CodeIP54
available casing colourswhite, gray, and black
dimensionsPX828:
height: 95mm
width: 95mm
length: 90mm
PX828-K:
height: 95mm
width: 95mm
length: 184mm
