LED Lamps and Modules

Description

The PX809 lamp has been designed to illuminate stages and for use in TV studios. Uni-Flood has a built-in system for tuning the frequency of the control signal ("flicker free" technology), which prevents the flickering effect in TV cameras. It is controlled by the DMX signal.
The brightness of the lamp can be set in the range of 0.001 – 100%, and the color temperature in the range of 2700 – 6500K. The lamp can be programmed using the screen, two buttons and a knob. In addition, PX809 has an implemented RDM protocol that allows you to send information in two directions.
When the DMX signal disappears, the user can freely control the brightness and color temperature of the lamp using the knob and buttons – selecting which parameter is currently to be edited.

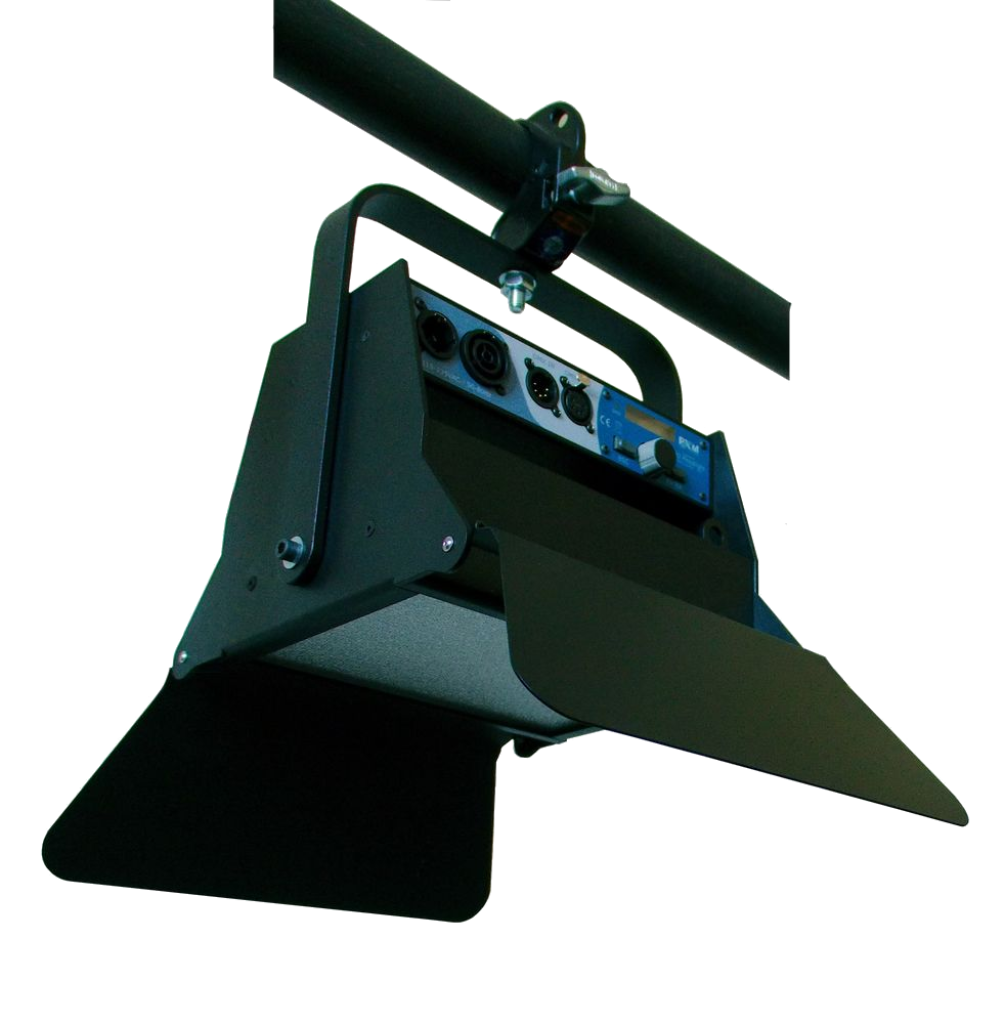

The lamp has a durable aluminum housing and is equipped with two apertures for framing.

Technical data

DMX IN/OUT channels512 / 512
RDMYES
color temperature2700 – 6500 K
power consumptionmax. 85 W
DMX lines connectorsNeutrik 5-pin
power supply connectorNeutrik PowerCON TRUE1
power supply100 – 240V AC
housing materialaluminum
weight4,1 kg
dimensionswidth: 300mm
height: 220mm
depth: 225mm
