Exhibition lighting

Description

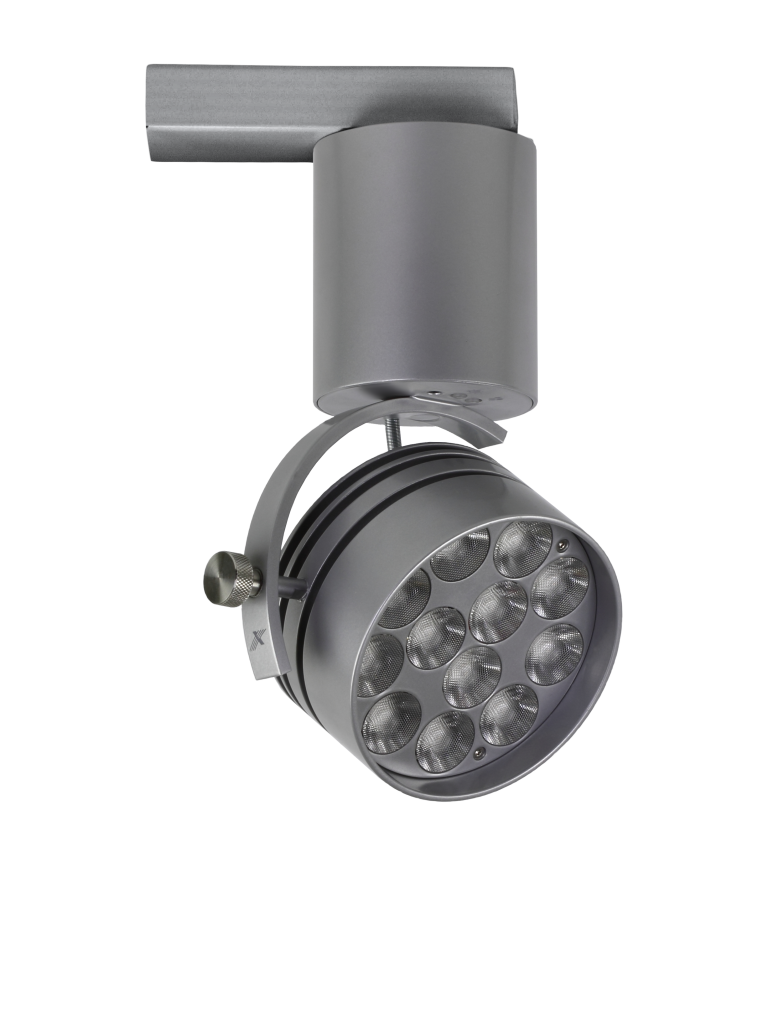

PX801-C is a professional LED illuminator designed for illumination of museum exhibitions or displays.
Thanks to the application of the most modern semiconductor SSL LED light sources and advanced control electronics, a high class illuminator was created which meets very high requirements for museum and exhibition lighting. Its most important advantages include a complete lack of ultraviolet radiation emission, trace amounts of infrared radiation, a very high factor of CRI color capturing, large brightness and small energy consumption. Modern electronics allowed to create a lamp that is devoid of the effect of "light vibration" (flicker free technology) in the full control range, which makes it useful in the television industry.
The device has a bracket that allows it to be mounted directly to the ceiling. Individual address allocated to each lamp allow for independent adjustment of its brightness, regardless of the settings of other lamps. Through push button located on the lamp casing it is possible to operate it manually.
Highly-effective LEDs made by Osram Oslon ® are used in the lamp with an efficient control system, through which the lamp emits small amounts heat.
The lamp casing renders it possible to change the direction of its beacon in two axes.

Technical data

number of LEDs 6 / 12 / 18
beam angle10°, 20°, 30°, 40°, EL* (10 x 45°), WW** (50 x 110°)
*not available for PX801-C-6
**not available for PX801-C-6 and PX801-C-12
available LED colours2700K, 3000K, 4000K, 5000K, 6500K
fixingto the ceiling
RDMYES
power supply230 V AC
weightPX801-C-06: 1,3 kg
PX801-C-12: 1,7 kg
PX801-C-18: 2,4 kg
dimensionsheight PX801-C-06: 252 mm
diameter PX801-C-06: 92 mm
height PX801-C-12: 262 mm diameter PX801-C-12: 122 mm
height PX801-C-18: 279 mm
diameter PX801-C-18: 148 mm
