Exhibition lighting

Description

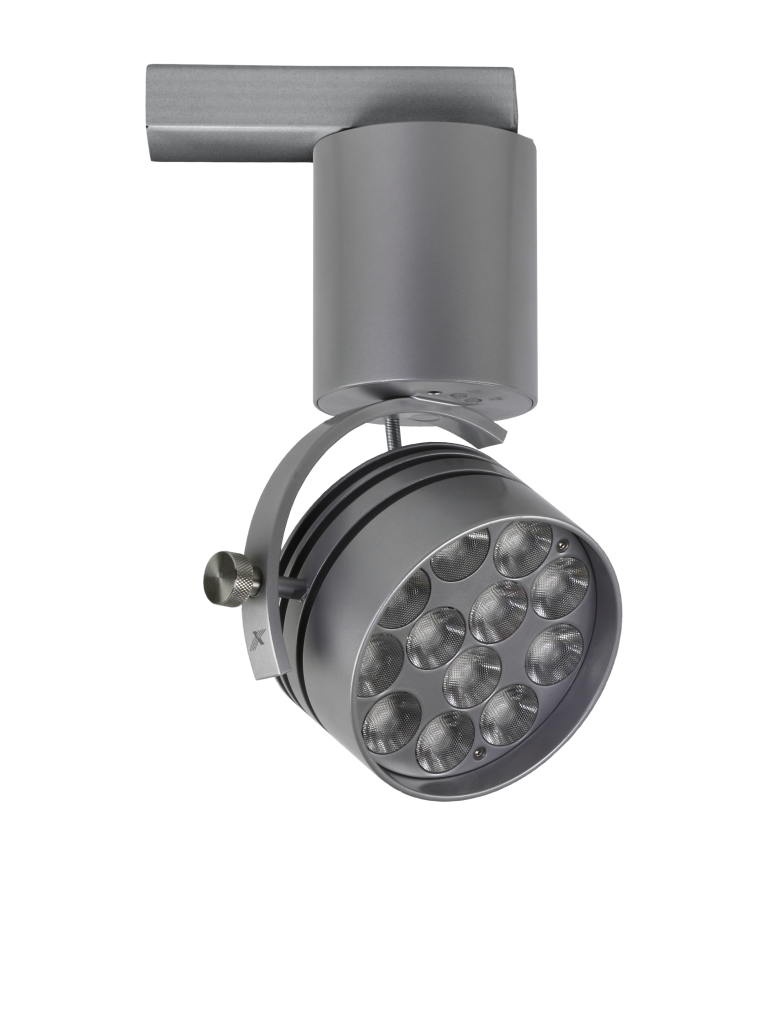

PX800-C is a professional LED illuminator designed for illumination of museum exhibitions or displays.
Thanks to the application of the most modern semiconductor SSL LED light sources and advanced control electronics, a high class illuminator was created which meets very high requirements for museum and exhibition lighting. Its most important advantages include a complete lack of ultraviolet radiation emission, trace amounts of infrared radiation, a very high factor of CRI color capturing, smooth adjustment of color temperature of emitted light, large brightness and small energy consumption. Modern electronics allowed to create a lamp that is devoid of the effect of "light vibration" (flicker free technology) in the full control range, which makes it useful in the television industry.
The device has a bracket that allows it to be mounted directly to the ceiling. Two individual addresses allocated to each lamp allow for independent adjustment of its brightness and color temperature, regardless of the settings of other lamps. Through push buttons located on the lamp casing it is possible to operate it manually (e.g. in case of lack of connection to a control line).
Highly-effective LEDs made by Osram Oslon ® are used in the lamp with an efficient control system, through which the lamp emits small amounts heat.
The lamp casing renders it possible to change the direction of its beacon in two axes.

Technical data

number of LEDs 6 / 12 / 18
beam angle10°, 20°, 30°, 40°, EL (10 x 45°)*, WW (50 x 110°)**
*not available for PX800-C-6
**not available for PX800-C-6 and PX800-C-12
color temperature2700 - 5000 K
RDMYES
fixingto the ceiling
power supply230 V AC
weightPX800-C-06: 1.3kg
PX800-C-12: 1.7kg
PX800-C-18: 2.4kg
dimensionsheight PX800-C-06: 252mm
diameter PX800-C-06: 92mm
height PX800-C-12: 262mm
diameter PX800-C-12: 122mm
height PX800-C-18: 279mm
diameter PX800-C-18: 148mm
