LED Lamps and Modules

Description

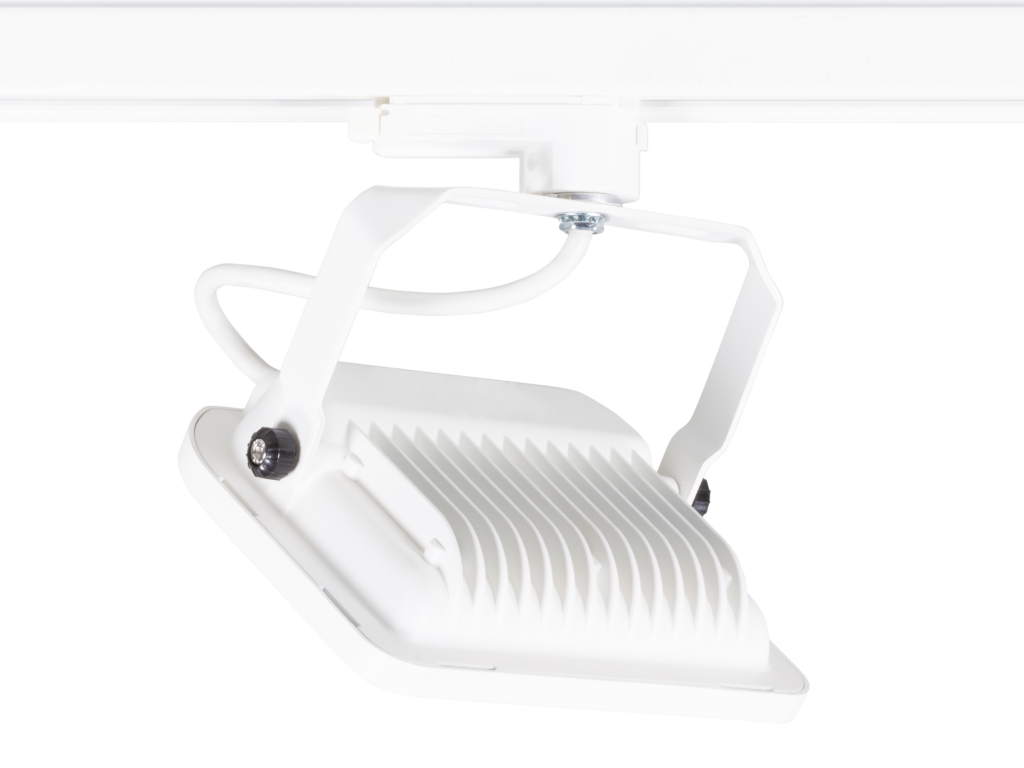

PX747 lamps are technical LED illuminators.
The advantage of the lamps is low heat emission and an aluminum housing, so they can be used in places where there is no large air flow. Its most important advantages include: complete absence of ultraviolet radiation, trace amounts of infrared radiation, high brightness and low energy consumption.
PxTech Square have a handle that allows them to be mounted on GLOBAL Trac ® Pulse Control bus-bars.
The lamp starts with the appearance of voltage on the track – on / off operation, which means that the lampsare not dimmable.
The lamp housing allows to change the lighting direction in two axes.

Technical data

beam angle100°
color temperature3000K, CRI min. 80
total luminous fluxPX747-T-20: 2000lm
PX747-T-50: 5250lm
power consumptionPX747-T-20: 20W
PX747-T-50: 50W
housing materialaluminium
available casing colourswhite / black
power supply230 V AC
weightPX747-T-20: 0.8kg
PX747-T-50: 1kg
dimensionsheight PX747-T-20: 130mm
width PX747-T-20: 156mm
depth PX747-T-20: 43mm
height PX747-T-50: 186mm
width PX747-T-50: 216mm
depth PX747-T-50: 45mm
