Description

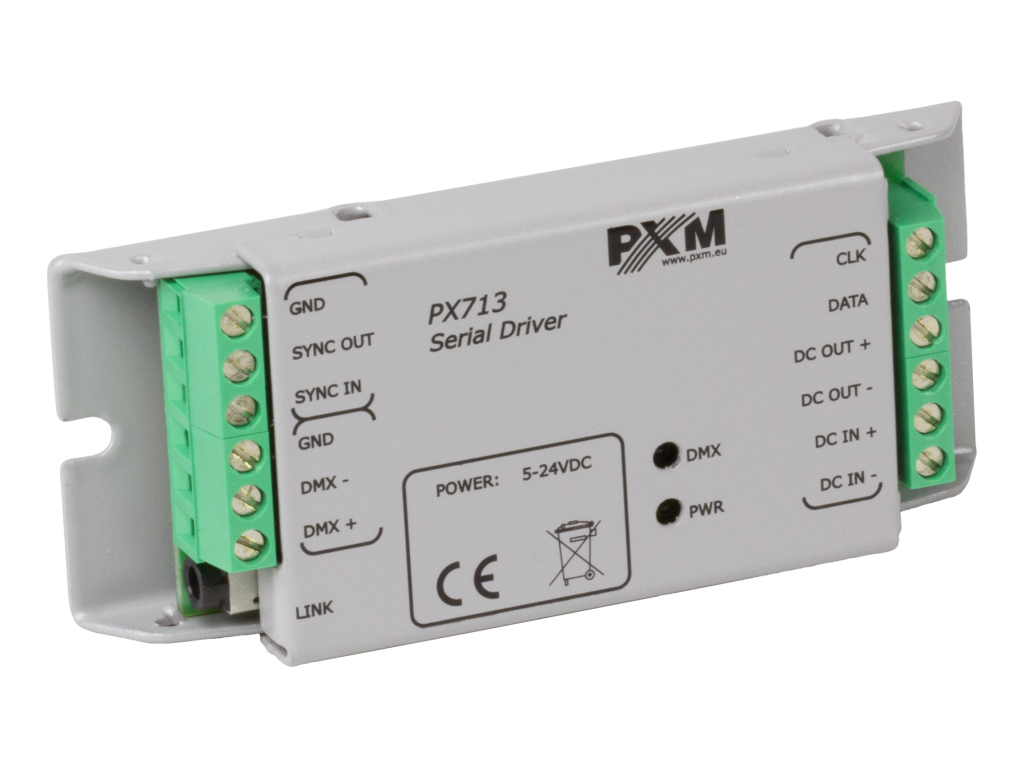

PX713 is a driver designed to control digital LED strips using the DMX512 protocol.
It supports three types of strips: WS2811, WS2812B and WS2813. The driver allows to directly control each pixel independently. The device supports 512 DMX channels.
In addition, it is possible to program “no signal” and “smooth” options. PX713 is designed to be programmed with PX277, moreover, the driver comes with the RDM protocol implemented.
The effect mode, that allows you to create interesting lighting effects, has been implemented in the device from firmware version 1.10.
Firmware upgrade is done using the PX313 module.
