Description

The device was replaced with PX357+.

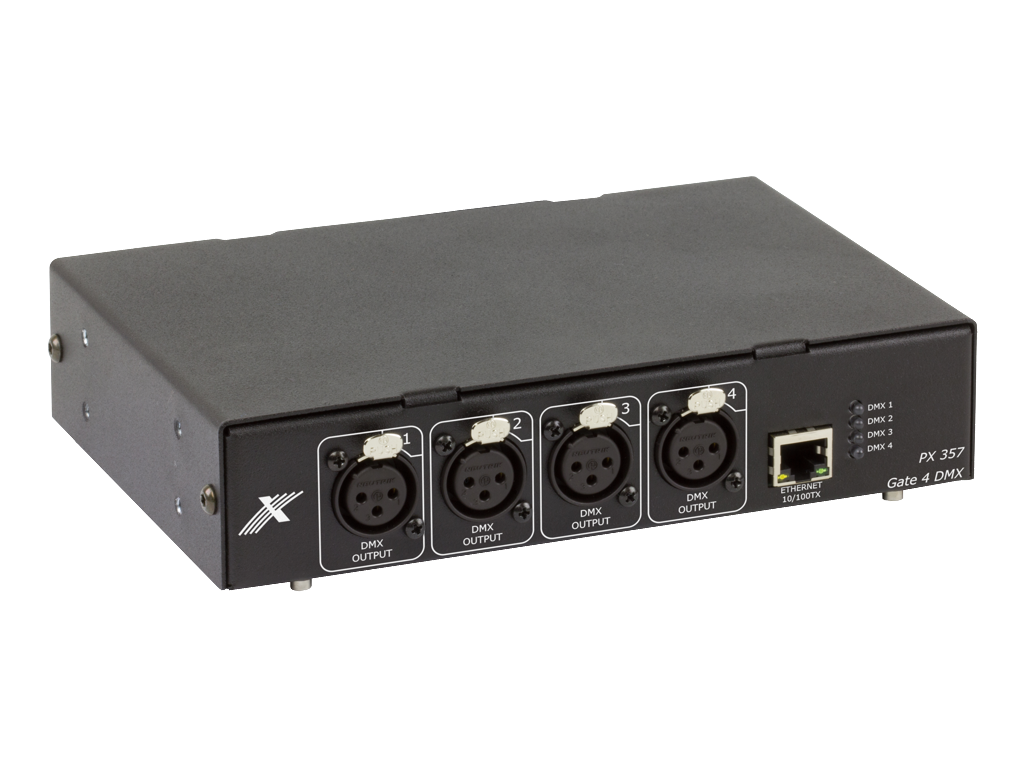

Art-Net gate - converts Art-Net signal to 4 output DMX-512 ports. It has 2 modes of merging signals. The device is protected by metal housing against mechanical damage. It has optical isolated XLR connectors, for DMX outputs.
The device is equipped with an Ethernet interface running in 10 / 100BaseTX standard. In addition, the device has four status LEDs that shows device modes.
Device is powered from 230V AC.
Configuration of network and DMX settings is possible through dedicated oftware.
In addition to the device, can be ordered elements that allow:

• single gate installation in RACK system
• double gate installation in RACK system
• suspension (eg. on a truss)
