Description

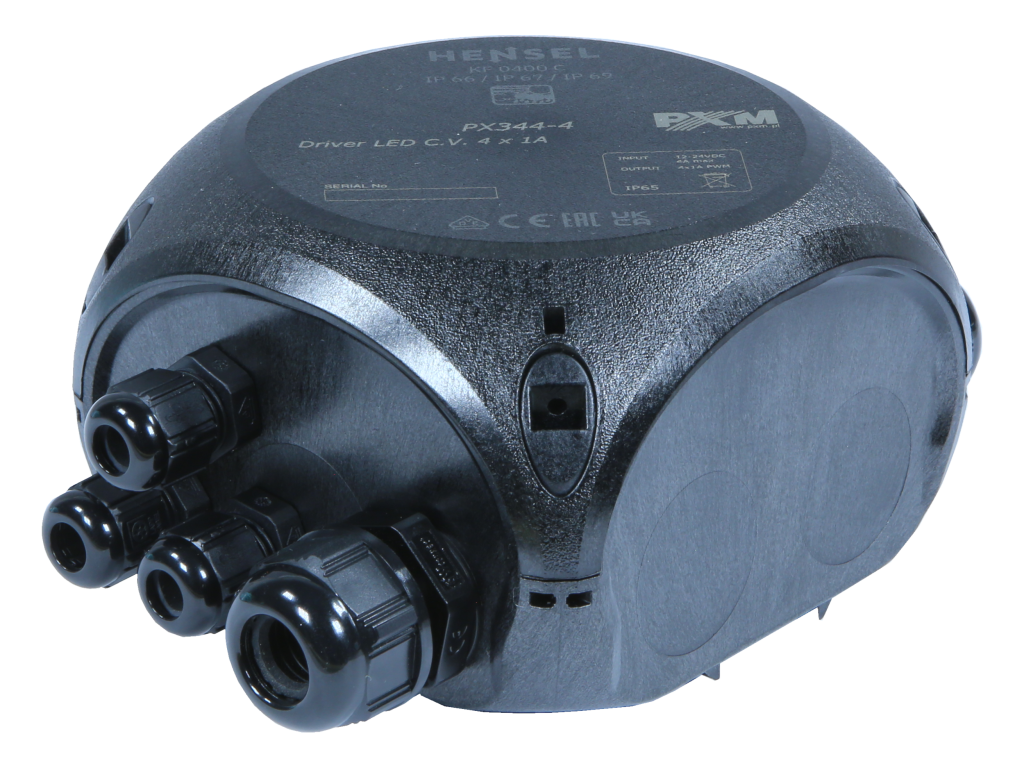

Driver PX344 is designed for voltage control of LED diodes. Built-in DMX receiver allows control of 1 – 4 channels.
The device is housed in a housing that provides IP65 protection class, and its programming is done exclusively via the RDM protocol.
PX344 can be controlled by DMX signal or operate independently. In this case, the user has a fully programmable scene and factory-programmed sequence. Thanks to the use of 16-bit resolution at PWM frequency 1.5 – 24kHz, the control of the parameters of individual channels is completely smooth.
The driver has a built-in control signal frequency tuning system (flicker free technology), which makes it particularly suitable for use in the television industry.
Since RGB/RGBW series LEDs often differ significantly in parameters, this can cause problems in obtaining white color (control of all channels at 100%). Therefore, PX344 has been equipped with an extremely useful function, the so-called white balance. Thanks to it, you can select for each set of LEDs such corrected control of individual colors by the module, so that at full control white color is achieved. What's more, this function also allows you to correct the color temperature of white color.
