Description

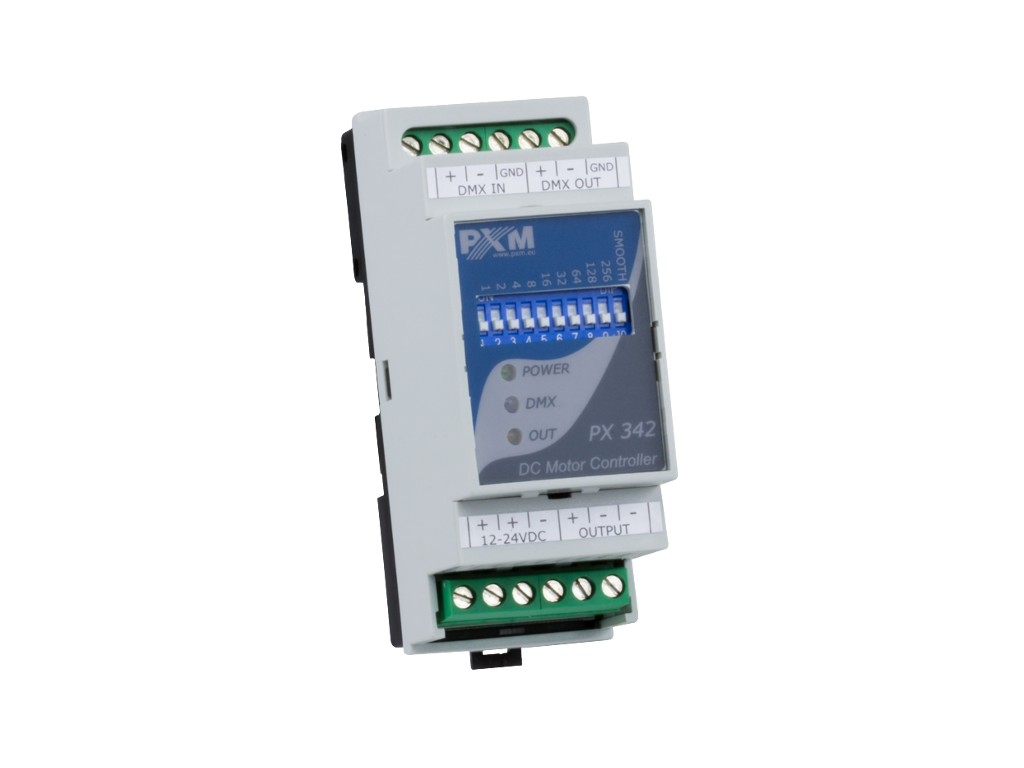

The PX342 PWM 10A Driver is a device used to control a single PWM output channel with a maximum load of 10A via the DMX-512 signal.

The DMX address can be set through the use of DIP type switches. The same goes for the activation of the "smooth" function.

The device has been equipped with an input and an output for the DMX signal. PX342 is manufactured in a housing that is adapted for mounting on DIN busbars with a width of 35 mm (size: 2-bar modules).
