Description

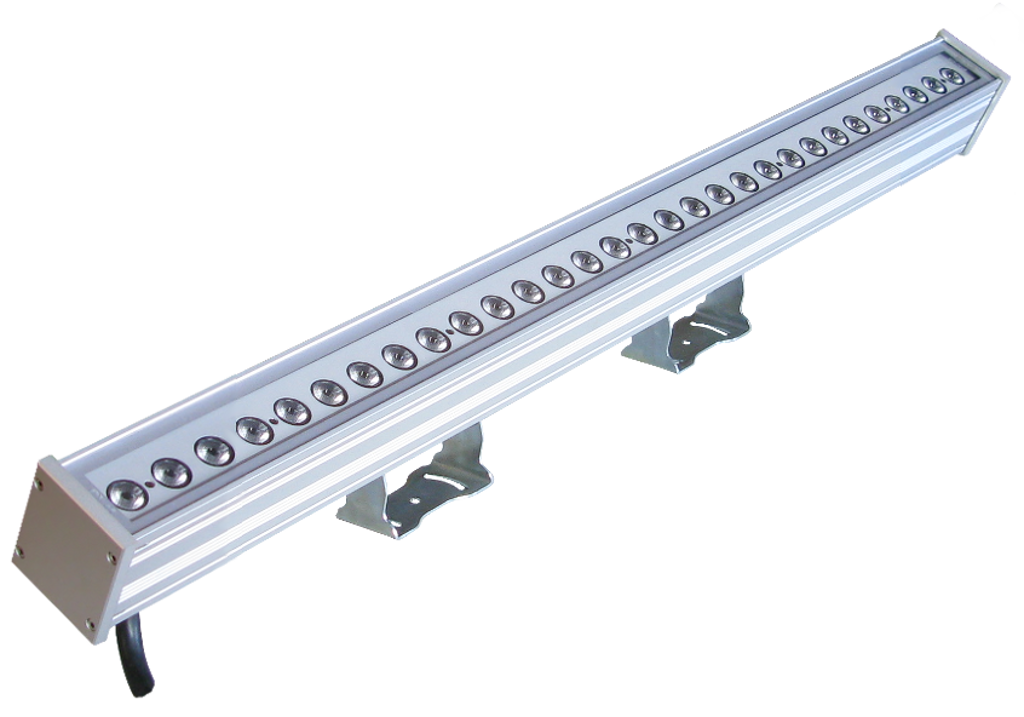

Linear LED lamp - model with built-in current power supply and DMX LED driver.

Multiples of three 3-watt (700mA) LEDs OSRAM OSLON, a wide range of color, different light beam angles options and aluminum IP40 casing makes of the PX312 high quality lamp with many uses.

* NOTE: The term of the production for PX312 linear lamps is minimum 2 weeks.

Technical data

beam angle10° , 20° , 30° , 40° , eliptycal
available LED coloursred, green, blue, amber, white (warm, neutral or cold)
built-in programs/scenes19/2
housing IP CodeIP40
power supply230V AC/50-60Hz (built-in power supply)
weight4,5 kg
dimensionslength: 1123 mm (for 30 LEDs)
width: 70 mm
height: 80 mm

Download

Other documents

PX312 connection scheme
ver.
1.2
