Description

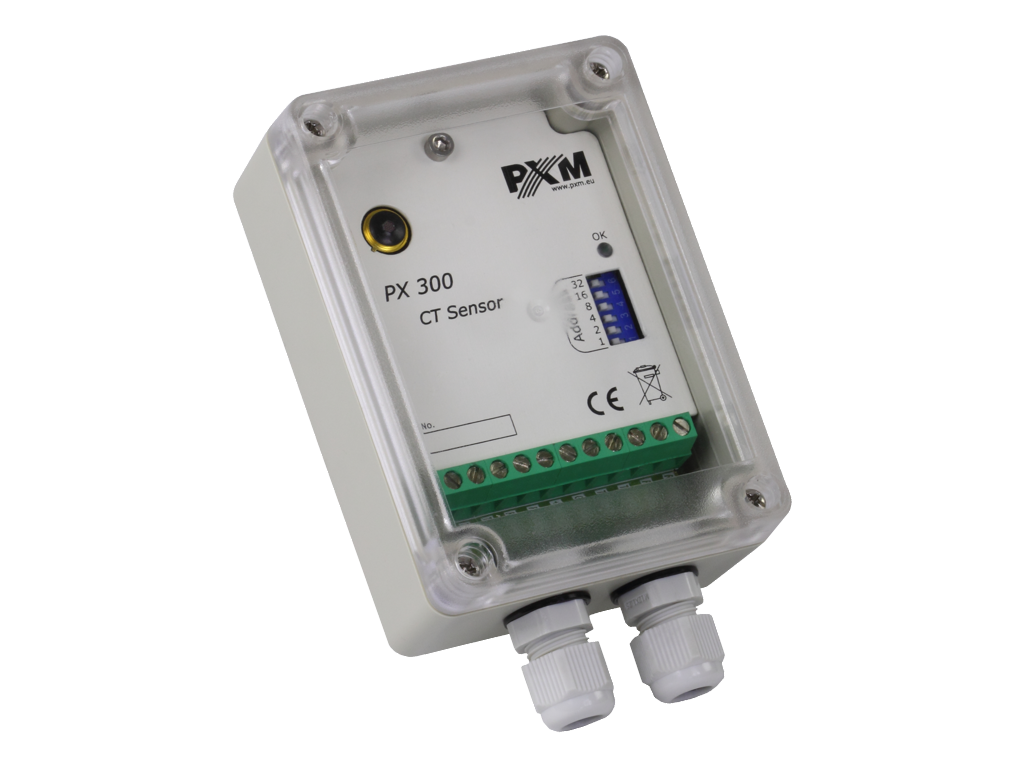

CT detector sensor is used to measure the color temperature range from 2500K to 6000K. The measured value can then use the DMX-512 or RS-485 to send to other devices.

Thanks to this it enables adaptive control of lamps equipped with adjustable color temperature of the emitted light depending on the light conditions, e.g. prevailing on the outside of the building.

Technical data

power supply24V DC
current consumption25 mA
output connectorsterminal blocks
housing IP CodeIP65
housing materialpolycarbonate
weight0,16 kg
dimensions105 x 75 x 40 mm
