LED Lamps and Modules

Description

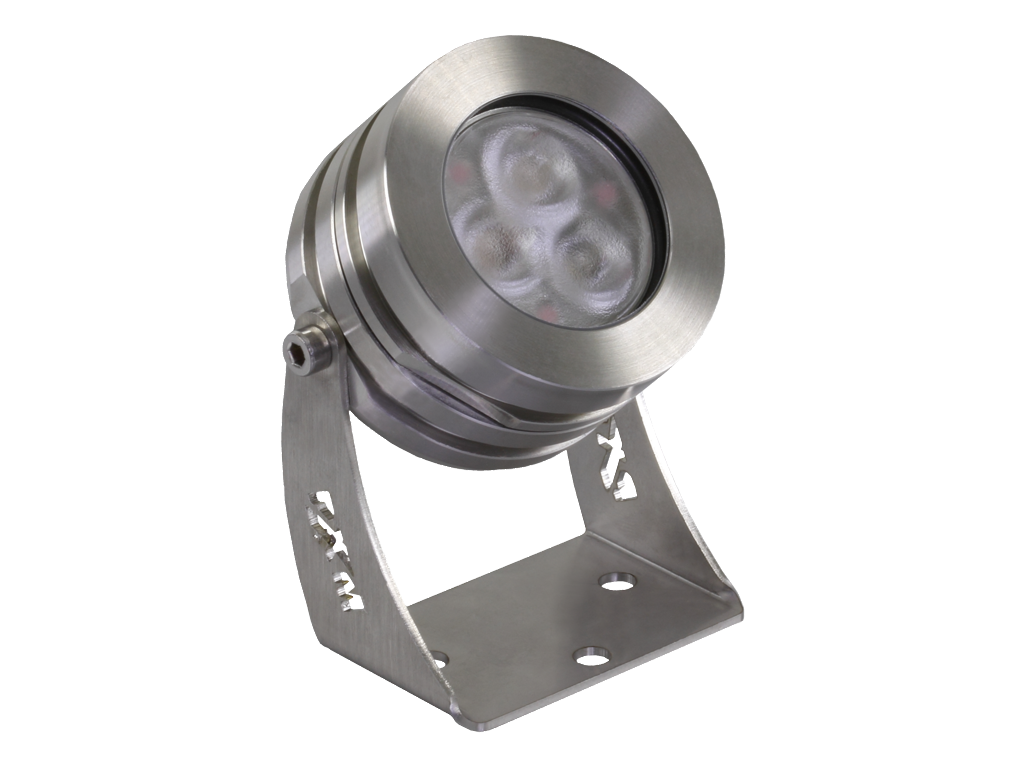

LED lamp 12V PxAqua 3 SH is designed for underwater lighting.
It can also be used to illuminate the interior or exterior architectural details.

The lamp uses three high-performance LEDs - OSRAM Oslon. There are available LEDs only in white, in different color temperatures: 2700K, 3000K, 4000K, 5000K, 6500K. The lamp may be provided with optics of following beam angles: 10°, 22°(typical) or 40°.

The casing is made of stainless steel (316L). The unit is supplied with a two-meter cable. Lamp may only work with voltage power supplies 12V DC. It can also be dimmable, when using voltage LED drivers.

Technical data

beam angle22°(typical), 10°, 40°
available LED colours2700K, 3000K, 4000K, 5000K, 6500K
housing IP CodeIP 68
maximum current consumption350 mA
housing material1.4404 stainless steel
power supply12 V DC
weight0,51 kg
dimensionsdimension: 55,8 mm
height: 33 mm
height with handle: 80 mm
