LED Lamps and Modules

Description

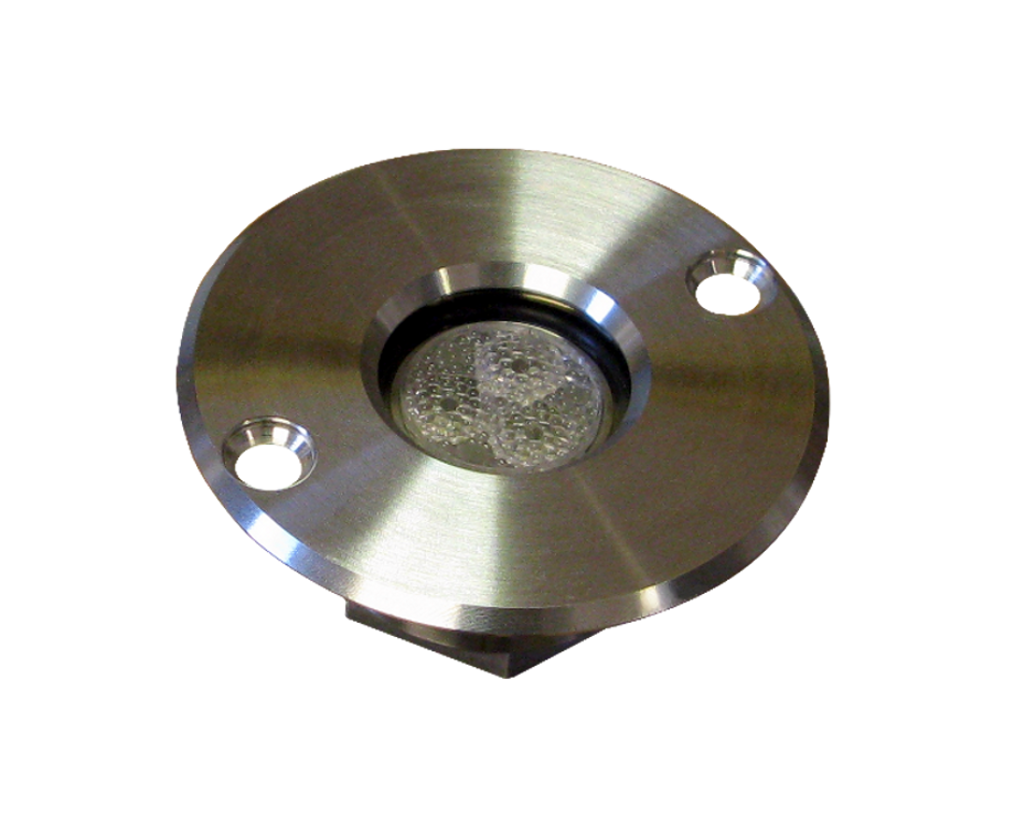

PxAqua 3 SF LED lamp with a class of protection IP 68.

PX278 LED lamp is designed for underwater lighting. It may also be used to illuminate the interior and architectural details. The lamp uses three high-performance LEDs Osram Oslon®, which ensures its high lighting performance. It can be equipped with optics with different light angles - an angle of 10°,25° and 45°. Optionally, the lamp can be fitted with LEDs of other colors from the standard RGB.

The lamp is supplied with current of 350 mA, but optional when used underwater PX278 lamp can run current 700 mA, and then the LEDs power is increased to 3x3W.

The lamp can be controlled with PX308 driver, which allows simultaneously connect up to 12 of such modules. PxAqua 3 Wide LED lamp is produced in a version with a inground casing.

Technical data

beam angle25° (standard)
10°/45° (on request)
brightness (for 25° lens at 1m distance)about 1000 lux (for white LEDs)
available LED colours2700K, 3000K, 4000K, 5000K, 5700K, RGB
housing IP CodeIP 68
housing material1.4404 stainless steel
power supply3 x 350 mA (3 x 700 mA underwater use)
1 x 350 mA (1x700 mA - underwater use)
dimensionsdiameter: 75mm
height: 55 mm
