Description

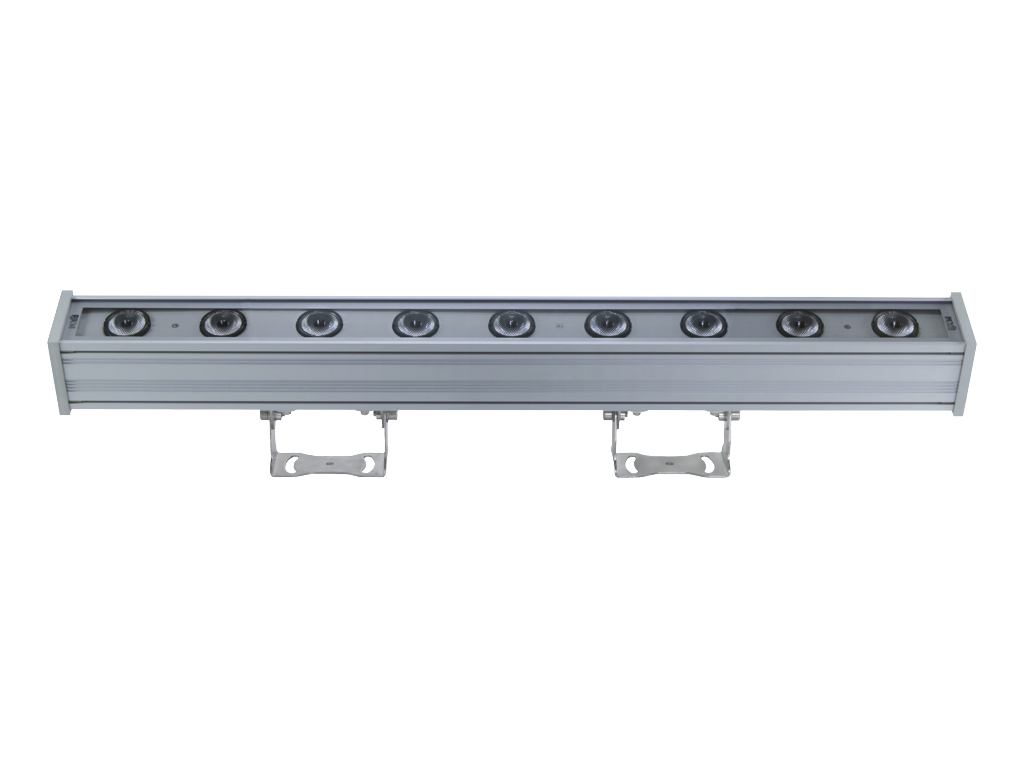

PxCrop a lamp designed for lighting and stimulation of plant growth.,

Lamp has 9 lenses built-in - under each of them there are 4 LEDs. Diodes are connected in four circuits, each containing 9 diodes of the same type. This allows a very precise mixing of light that is illuminating the plant.

Default lamp circuits 1 and 2 are red LEDs, circuit 3 is a white and circuit 4 is blue LED color. Each circuit is controlled independently in the range from 0 to 100% of brightness. On request, we can change the configuration of LEDs color. The maximum power of each circuit is around 30W (this is the average value - in fact, it depends on the voltage of LED bin type), and maximum power of the lamp was limited to 100W.
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!

Technical data

beam angle30°
housing IP CodeIP 65
power supply230V AC/50-60Hz (built-in power supply)
weight4,5 kg (with 2 m cable)
dimensionsLength: 760 mm
Width: 70 mm
Height: 80 mm
