Description

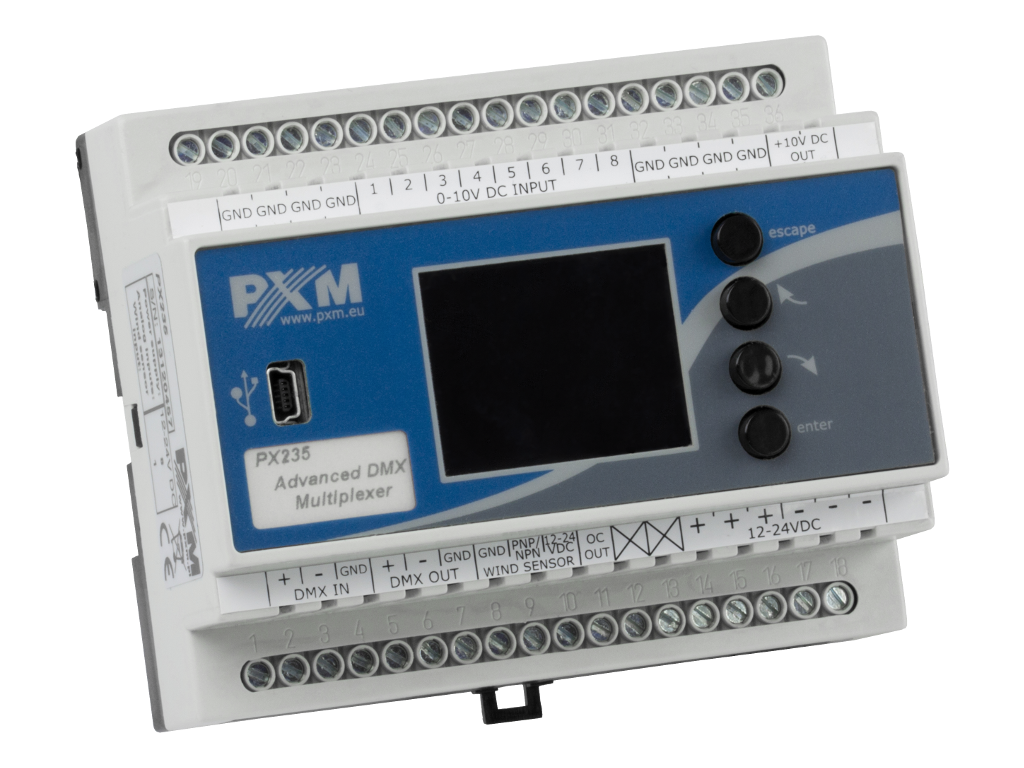

Advanced DMX Multiplexer is a device that allows to change analog signal 0-10V to the DMX-512 signal.

Received input analog signals are converted to digital form and sent as a standard DMX-512 signal. PX235 is a professional device that allows reception of data from 8 analog inputs 0-10V, and their conversion to the DMX signal. The device allows you to select a channel from the package DMX512, which processed the signal is inserted.

The PX235 has installed a single input and output of the DMX signal. Built-in color display makes it easier to operate with the product, and also provides some basic information on the state of the signal. In addition, the device has a built-in support for wind sensors. It allows the conversion of the pulse signal to digital values of the DMX512 signal. Advanced DMX Multiplexer also has OC output (Open Collector), which allows you to request signaling states, such as changes in wind speed, in the form of alarms. Example use: reduce the amount of water flow (in cooperation with the PX140 controller).

It has built-10V output that can supply analog sensors such as potentiometers and photometers. The USB connector allows you to communicate with the computer and update the software installed on the PX235.
