Description

An advanced LED driver 6x7,5A with built-in DMX-512 signal receiver. The device has 6 voltage OC outputs (open collector) with a maximum load on each output 7,5 A.

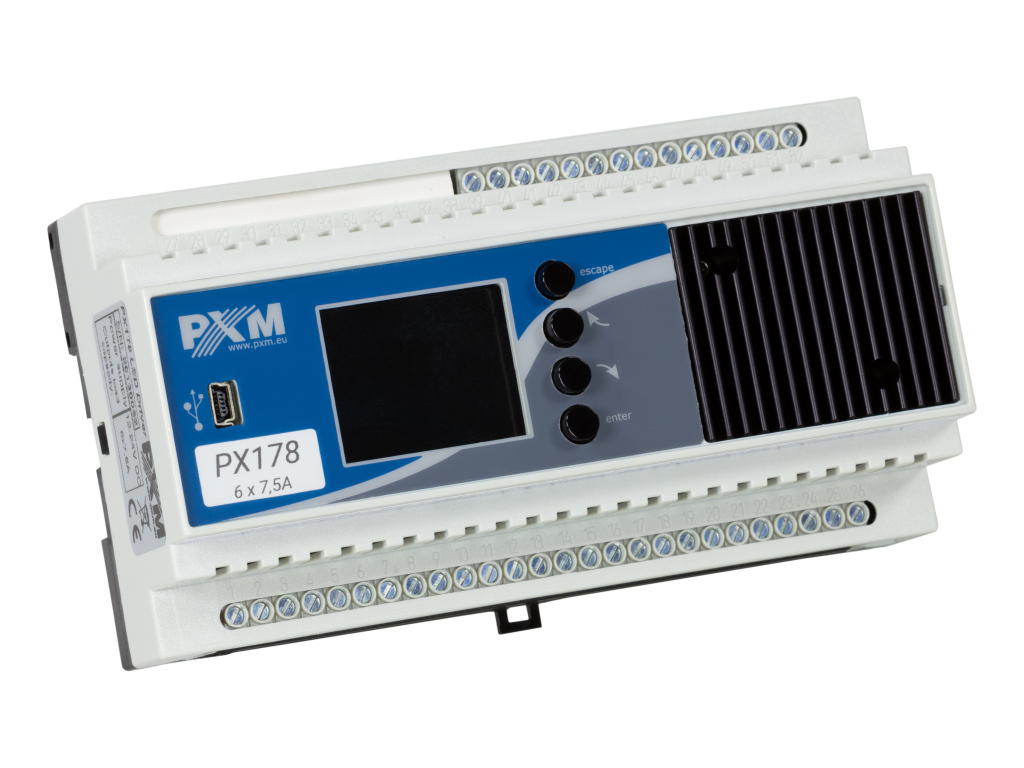

The PX178 driver is designed to control the LEDs. This is the most advanced device of this type available in the offer of the PXM company. The PX178 is produced in a housing of 9 standard DIN rail modules width equipped with a color LCD screen. Thanks to that programming and control equipments operation runs more intuitively.

Built-in receiver enables control of 6 DMX channels (eg 2 x RGB) directly from the DMX protocol. Wide supply voltage range allows to connect and power up a large quantity of LEDs. In addition to that, the device uses overcurrent protection, temperature protection to prevent overheating of the driver and the DMX line surge protection.

The PX178 can be either controlled by DMX or act independently. In this case, the user can choose from 8 fully programmable scenes or eight programs. There is also an option to freely change the playback speed and fluidity changes in steps. By using 16-bit resolution parameters of each channel can be completely smoothly changed.
