Description

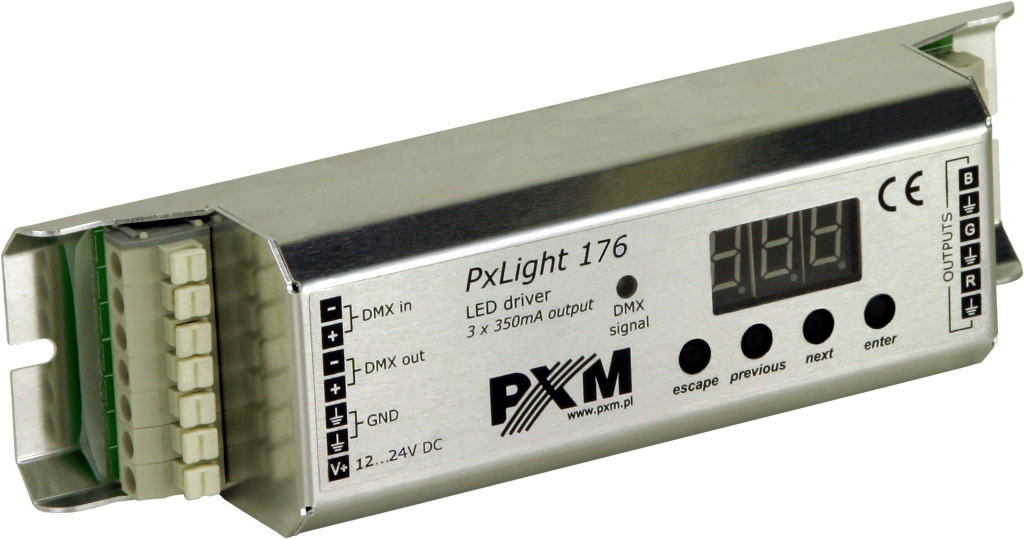

DMX-512 signal to LED RGB control signal converter supplied with 24V.

By dint of 16-bit resolution application, brightness control of particular channels is absolutely fluent. The device is dedicated to control 1 W (350 mA) LEDs. In each channel one may connect in series 1 to 6 such diods. Built-in white balance allows to set a proper colour temperature for full control of all outputs (white colour).

The module accepts PxLink protocol, that allows to set DMX address remotely.

PX176 has built-in programmable scenes and sequences, launched automatically at DMX signal interruption.

CAUTION!
The device is out of production !
It has been replaced with PX305 driver.
