Description

CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
Replaced with PX787.

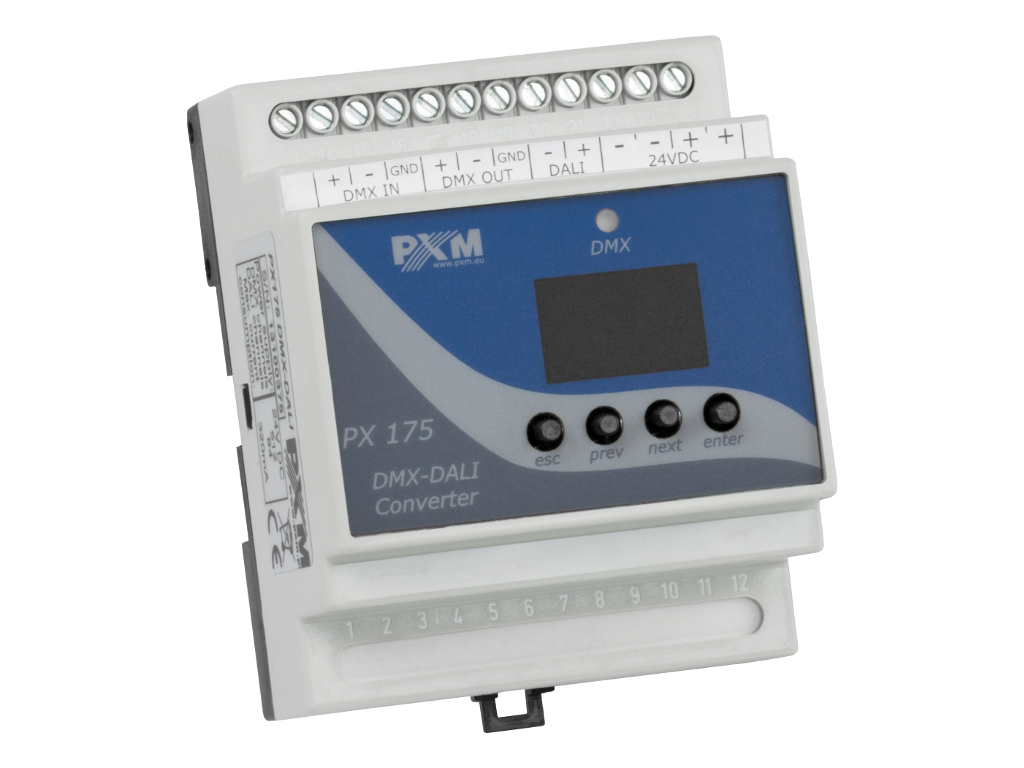

DMX-DALI Interface is an advanced controller that allows to connect the dynamic lighting installations based on DALI protocol to DMX-512 control systems.

PX175 can control - according to standards - up to 64 DALI devices. The device menu allows to address single lamps separately or in groups - the user may create up to 16 such groups to make the control easier.

What is more, for each lamp a range of individual parameters can be defined, such as minimal or maximal brightness, fade time (that is, time in which the lamp reaches the maximal brightnes), fade rate (number of steps required to reach the maximal brightness) or set the brightness in case of control system failure.

By dint of PX175 Converter a reaction for DMX signal fade or interruption can be defined as well (three different settings to choose from - all lamps light up with maximal brightness, all lamps dimm immediately or static scene of adjustable brightness).

The device, powered with 24V DC, is manufactured in casing of 4 rail modules width, adapted for DIN rails mounting in electrical switching stations.
