Description

CAUTION!
The device has been withdrawn from production and replaced with a new module PX788 Merger DMX 3/1.

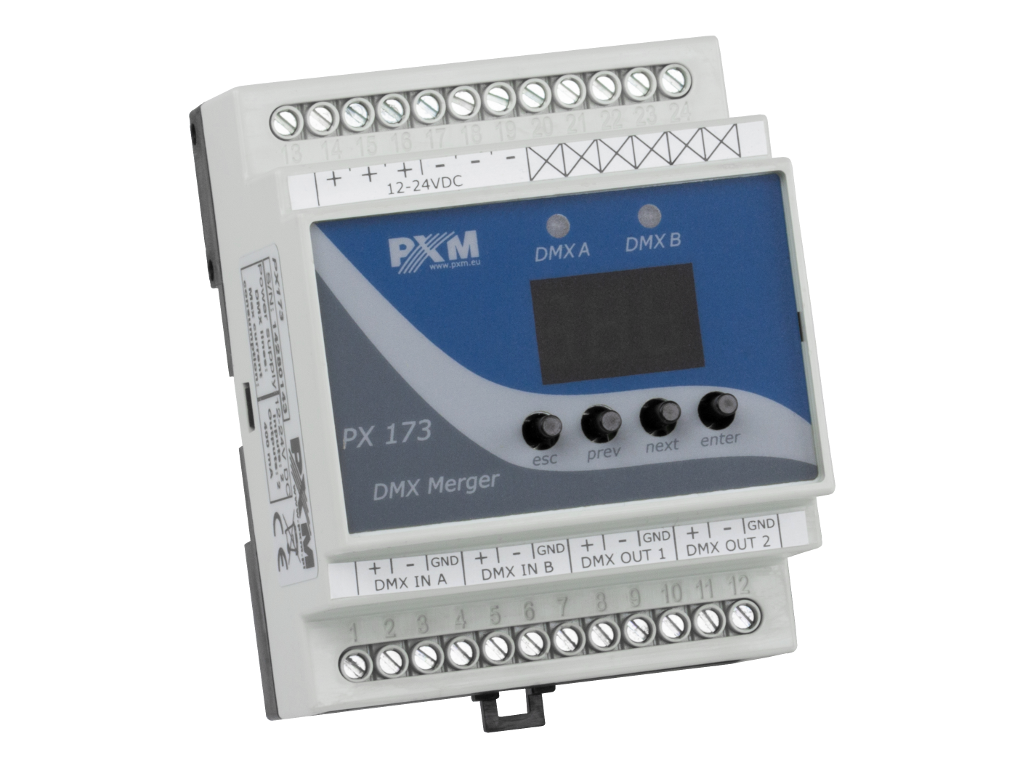

Rail Merger DMX - rail DMX signal adder DMX-512 is a protocol that defines the serial transmission of control data for 512 channels. Many drivers can not produce full range of 512 addresses and send data for a smaller number of channels. In the case of installations where few such type of drivers work together, there is sometimes a need to add output of individual devices and send them via a single DMX circuit.

Rail Merger DMX is a device that allows to add together the DMX signals - get data from several inputs, set them in correct order and send to a single 512-channel output. The device allows to: - Select the amount of downloaded channels from each input independently
- Choose any starting address for each input
- Choose any (from range of 24 - 512) amount of transmitted channels with each output
- Choose how should influence on each other corresponding two input channels:
• "Only A" - to the output is transmitted only from the input channel A
• "Only B" - to the output is transmitted only from the input channel B
• "Bigger wins" – a channel of greater value is transmitted to output
• "Smaller wins " – a channel of less value is transmitted to output
• “The difference" - a difference between values of channels is transmitted to output
• "As long as A is not B" - the output is transmitted from the input channel A, as long as the device is working, after being terminated or turned off to output is transmitted the input channel B
• "as long as B is not A" - as above
• "As long as A different from B stays B" - to output is transmitted channel from input as long as the channel value at the input A reaches the B channel value; since then the output is transmitted only from the input channel A
• "as long as B different from A is A" - as above
Please note the correct way connecting the DMX receivers - the receivers must be connected in series to form a chain and at the output of the last receiver make sure to connect the terminator.
