LED Lamps and Modules

Description

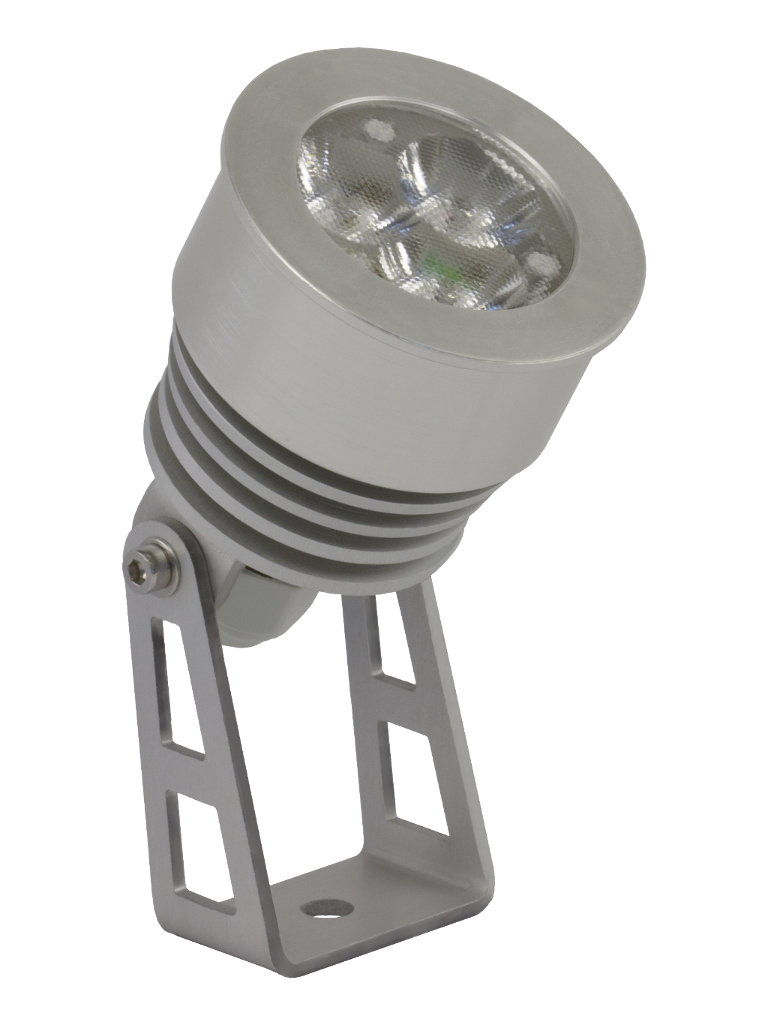

PxSpot 3 C LED lamp designed to illuminate the interior and architectural details.

Moreover, it can be used for the stage lighting.
The lamp consists of three high power LED est. 1W each, mounted on a heat sink protecting it from overheating. It can be equipped with optics with different beam angles of illumination.

Optionally product can be also appointed with LEDs of other colors. It have to be controlled with a LED driver with 350mA output current, which enables simultaneous connections (depending on the version) up to 12 such lamps. PX167 LED lamp is made in the version with the handle.

It is designated only for installation inside of buildings.

Technical data

beam angle25º (typical)
10º, 40º (on request)
available LED coloursR, G, B
power supply connectorRJ 45
power supply3x350mA
dimensionsDiameter: 50 mm
Height: 100 mm
