Description

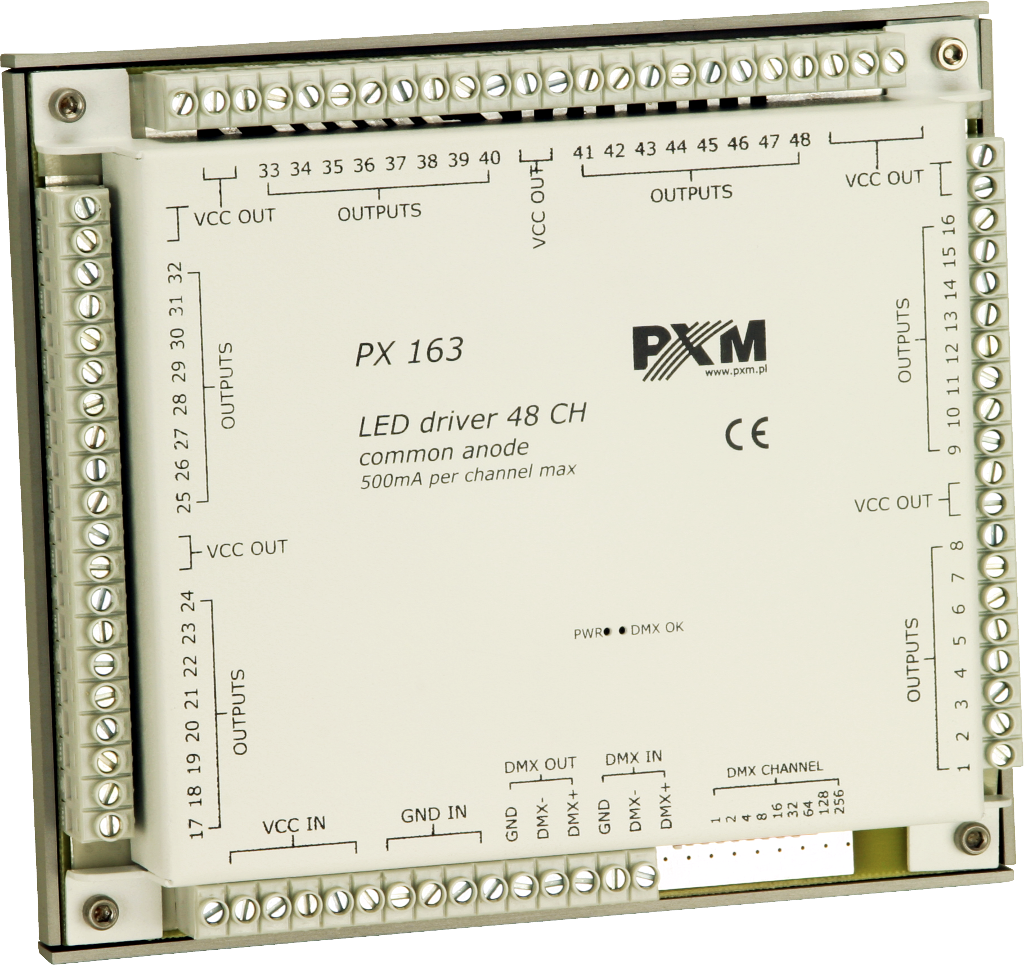

48-channel driver for RGB matrix systems

PX163 is perfect for control of illumination of big areas composed of many modular elements. The facades - LED screens or illuminated floors can be used as an example.

With a built-in DMX signal receiver it is possible to control all 48 channel with the mediation of DMX-512 protocol.
A wide range of power supply voltage (7 - 24V DC) and a high outputs load capacity (up to 0.5A per channel) allow to connect great number of LEDs and - what follows - achieve the effect of a steady illumination of the whole surface.
By dint of 8-bit resolution the control of particular channels is completely smooth.
The additional advantage is implementation of a high-tech solution - "flicker-free" control frequency, it allows to use the PX163 driver in the installations created for TV industry applications.

The driver is manufactured in a "common anode" version, what allows to connect LEDs on a common "+" wire.
Small and flat casing of dimensions 158 x 140 x 35 mm is adapted for on-wall mounting.
The clamping screws guarantee a quick and easy installation.
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
