Description

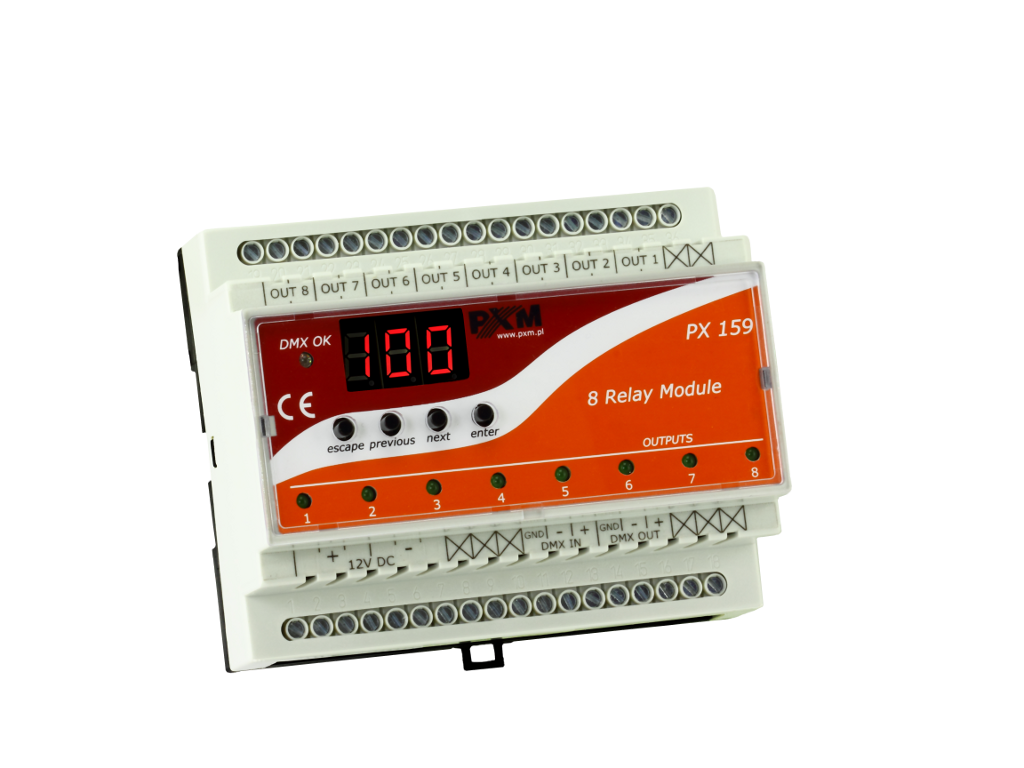

DMX signal controlled 8 relays set.

The module contains set of 8 relays, that control the on / off type switchers. The device menu allows to program the DMX address for all the output channels, set the characteristics for electric motor control, select a device reaction to DMX signal absence or interruption and to define four scenes and two programs, composed of ten steps maximum each.
The device is equipped with the DMX signal input and output.
PX159 is manufactured in a casing adapted for 35 mm wide DIN rail mounting.
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
