Description

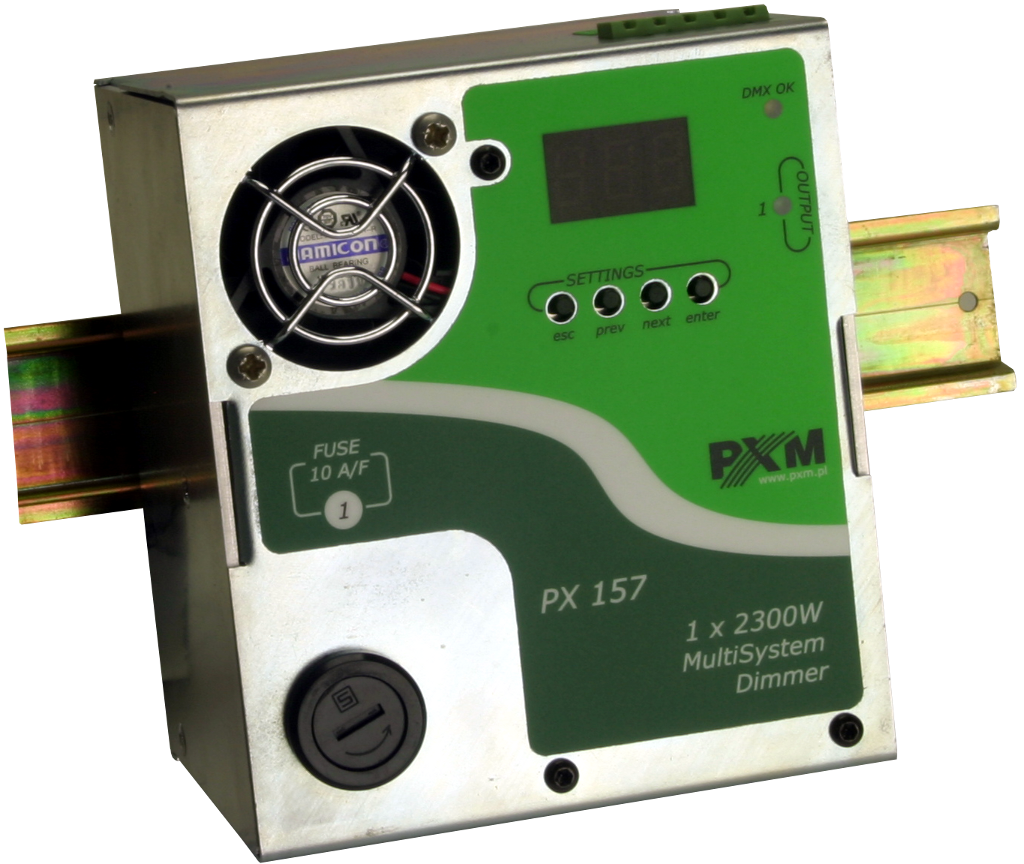

Professional digital dimmer for fixed installations.

• 1 channel 2300 W
• built-in noise suppression circuit, LED indicators for input signals and fuse blow
• control input: DMX-512, 1 - 10 V or external buttons

Programmable parameters:

• DMX start address
• control characteristics - one of eight brightness curves
• ACL - voltage limiter (from 50 V to 230 V)
• PREHEAT - bulb preheating (0 - 10%)
• behaviour on DMX signal interruption (on, off, dimm, one of 3 scenes, one of 2 chasers, last value)

Programmable parameters for channel:

• DMX address (from 1 to 512)
• one of eight control characteristics (brightness curves)
• voltage limiter (50 V - 230 V)
• controlled with digital (DMX-512) or analog (0 - 10 V or external buttons) signal
• three scenes and two chasers programmable
• assembled in electrical switching stations on 35 mm wide DIN rails
• dimensions: 105 x 132 x 96 mm

CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
