Description

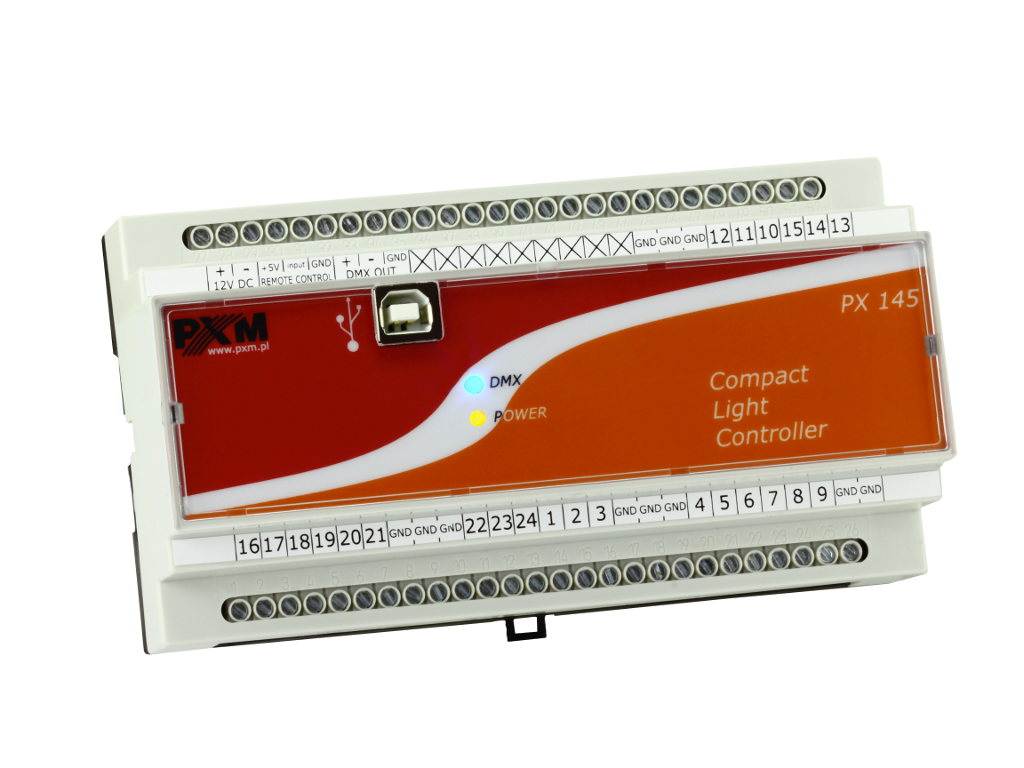

PX145 Compact Light Controller is a powerful lighting controller that allows you to control even the most sophisticated lighting systems (such as fountains). For communication with other devices there are 24 on / off inputs designated, output in DMX-512 standard, remote control input allowing wireless transmitting using code RC-5, and a USB port. The module is designed primarily to control both fast and slow changes in lighting, it also perfectly suites to synchronize the music with dynamic lighting and control all the intelligent devices.
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!

Technical data

DMX IN/OUT channels0/64
ON/OFF control inputs24
RC-5 remote control inputYES
real-time clockYES
scenes3072
programs512
sequences128
timers1024
delays512
internal events1024
masks256
power supply12-24 V DC
maximum current consumption400 mA
dimensions157,5 x 86 x 60 mm
