Description

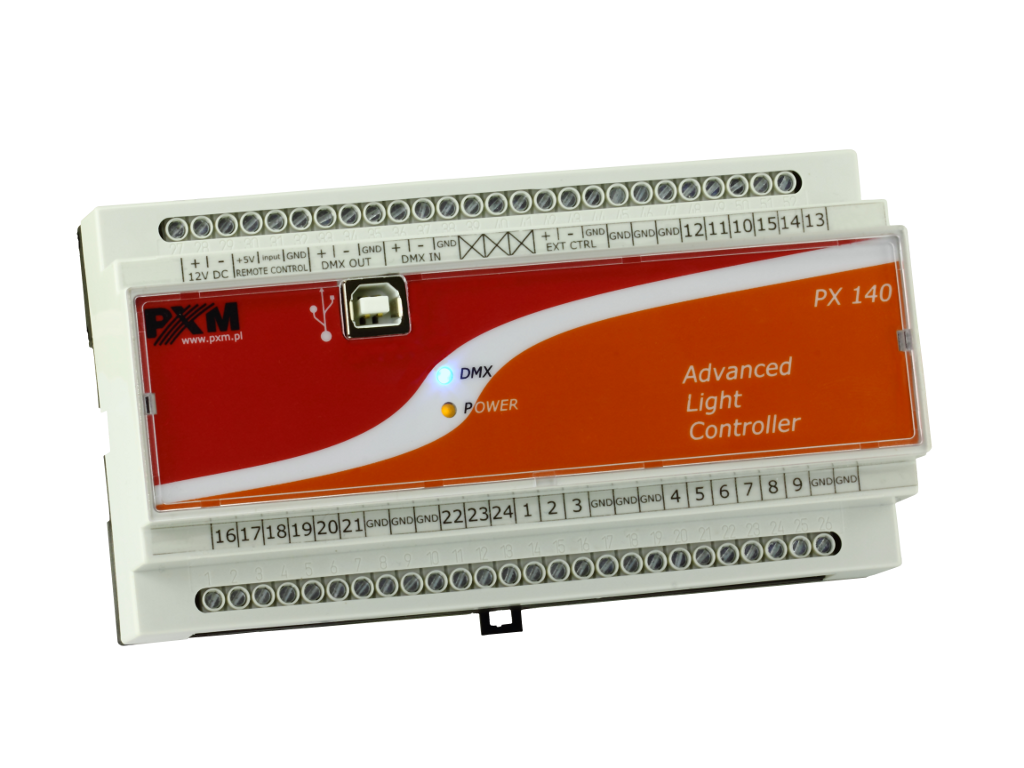

Advanced architectural lighting controller

Allows to control complex lighting installations. PX140 module has the built-in 24 on/off type inputs, DMX-512 input and output and the USB port to communicate with the environment. The controller is mostly destined to control slow lighting changes.

The device is programmed with the application designed for Windows platform, through the USB port, after configuration it works entirely by itself. PX140 may be controlled with the outward buttons (movement detectors and duks-activated switches are possible) or DMX-512 controller (eg. lighting console), or with the built-in clock, that allows to schedule precisely the events with 1024 timers.

The module allows to program up to 3072 scenes and 512 programs (consisting of 999 steps max.).

For older firmware versions, connecting to the controller is only possible under Windows XP or Windows 7. To connect to the controller under Windows 10 or 11, you must:

• connect to the controller using a computer with Windows XP,
• update the firmware to version 3.04.0006.

CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
