Description

Advanced architectural lighting controller

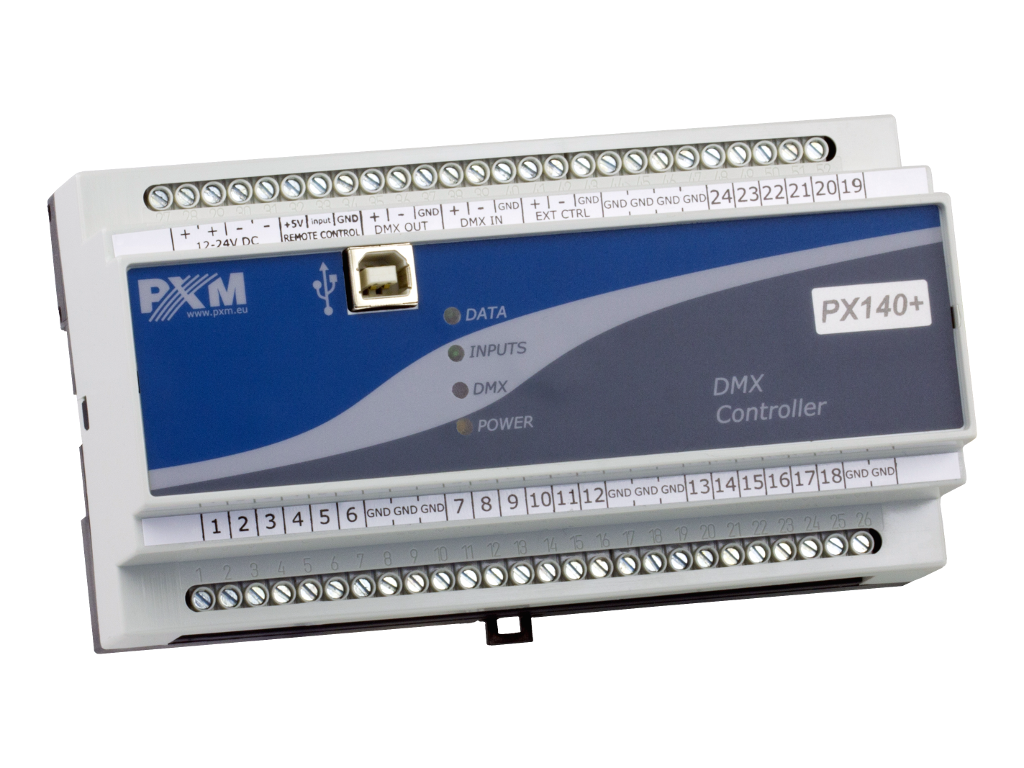

Allows to control complex lighting installations. PX140 module has the built-in 24 on/off type inputs, DMX-512 input and output and the USB port to communicate with the environment. The controller is mostly destined to control slow lighting changes.

The device is programmed with the application designed for Windows platform (XP, 7, 8), through the USB port, after configuration it works entirely by itself. PX140 may be controlled with the outward buttons (movement detectors and duks-activated switches are possible) or DMX-512 controller (eg. lighting console), or with the built-in clock, that allows to schedule precisely the events with 1024 timers.

The module allows to program up to 10240 scenes and 512 programs (consisting of 999 steps max.).
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
