Description

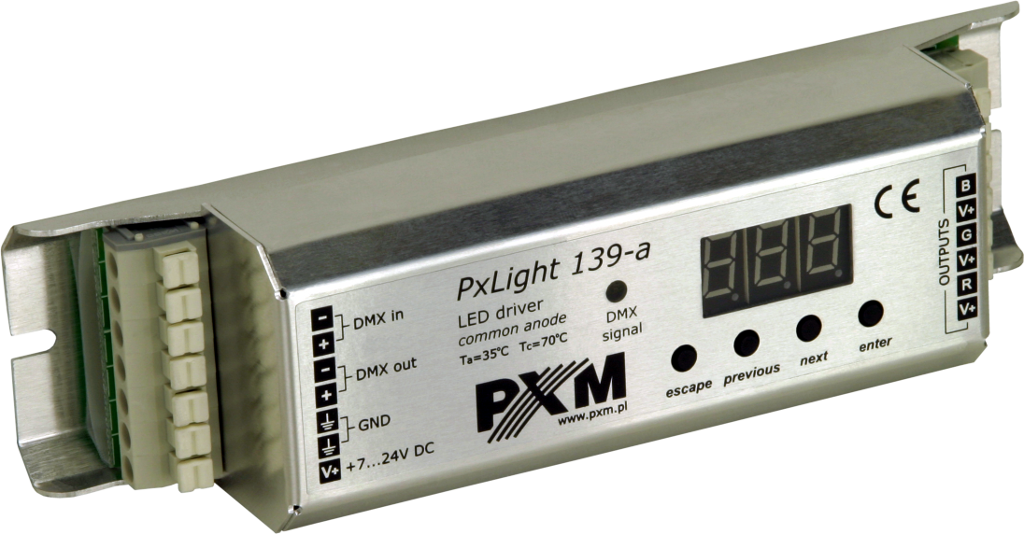

DMX-512 signal to LED RGB control signal converter.

By dint of 16-bit resolution application, brightness control of particular channels is absolutely fluent. The device has a quick OC system transistor at the output of each ciruit. With such a solution, the only limitation of connected LED is total power of one circuit, that cannot exceed 2.5 A (375 typical 20 mA LEDs approximately). Built-in white balance allows to set a proper colour temperature for full control of all outputs (white colour).

The module accepts PxLink protocol, that allows to set DMX address remotely.

PX139 has one built-in scene and 18 programmable sequences, launched automatically at DMX signal interruption.
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
