Description

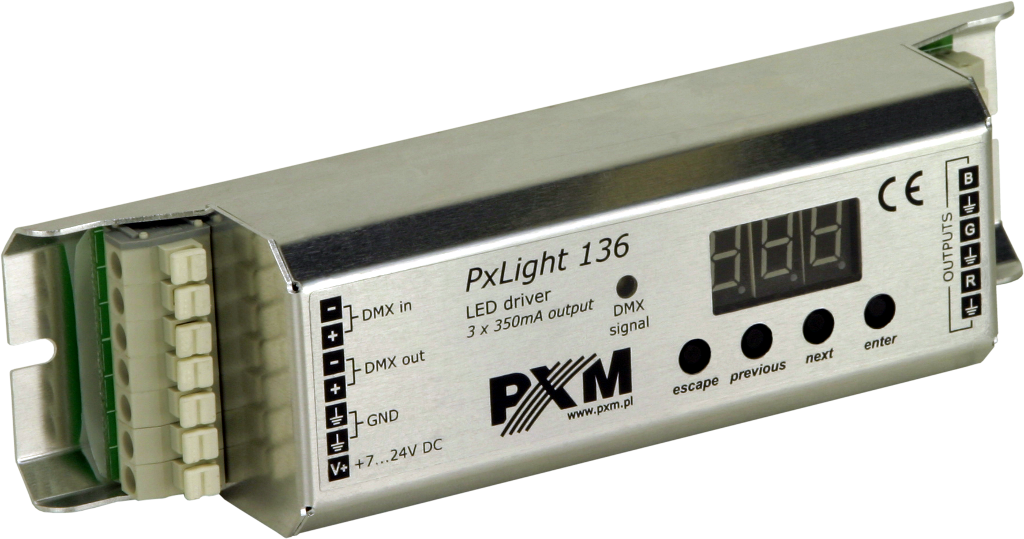

DMX-512 signal to LED RGB control signal converter.

By dint of 16-bit resolution application, brightness control of particular channels is absolutely fluent. The device is dedicated to control 1 W (350 mA) LEDs. In each channel one may connect in series 1 to 5 such diods. Built-in white balance allows to set a proper colour temperature for full control of all outputs (white colour).

The module accepts PxLink protocol, that allows to set DMX address remotely.

PX136 has built-in programmable scenes and sequences, launched automatically at DMX signal interruption.
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
