Description

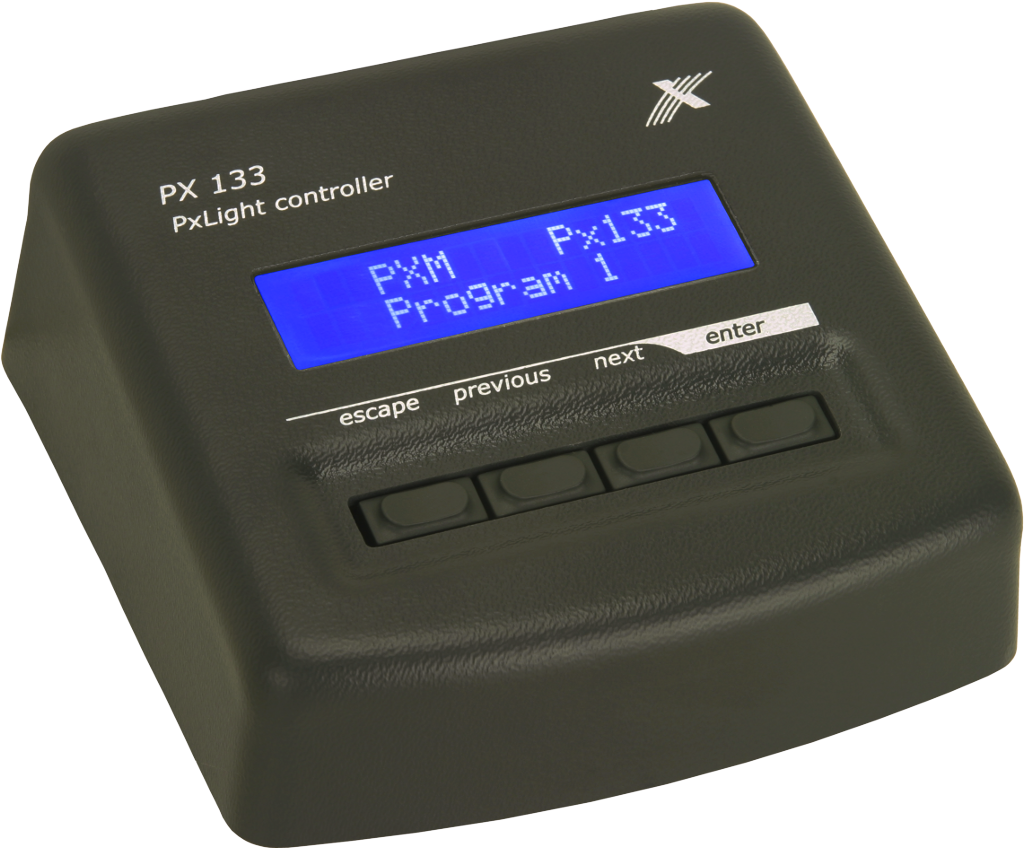

Dedicated RGB lighting controller

Device allows to control simultaneously up to 170 RGB lamps (LED illuminators or fluorescent lamps) or 170 RGB drivers. PX133 works with spotlights as well. The only condition that has to be fulfilled is 3 DMX channels (red, green and blue) maintenance.

The controller can be programmed with 4 buttons, the USB port is for upgrading the controller's software or using the "virtual keys" (operating the controller through the PC computer).

Programmable:

• 10 scenes
• 4 chasers
• 4 sequences
• chasers' speed
• step-to-step fading time
• X-fade

Two modes of colour setting:

• classic RGB (range from 0 to 255 for each colour)
• simple: brightness (0 - 100%) and colour (0% = violet - 100% = white)

Controller accepts PxLink protocol. With this attribute the user has the opportunity to remotely assign DMX addresses and other parameters to each lamp. This option is especially useful when the access to a lamp is difficult or burdensome (for example because of mounting place).
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
