Description

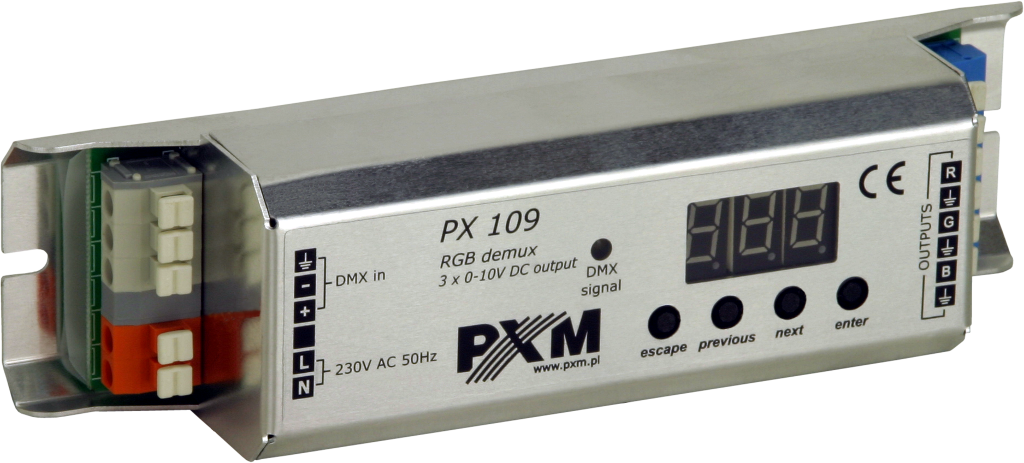

DMX-512 signal to RGB fluorescent lamps control signal converter.

Two output characteristics: 0 - 10 V or 1 - 10 V.

2- or 3-bytes control:

• 2-bytes:
  • first byte is for brightness of all RGB output channels
  • second byte chooses 1 of 256 RGB colours, automatically changing colours at RGB outputs
• 3-bytes:
  • first byte is directly for the R output
  • second byte is directly for the G output
  • third byte is directly for the B output

Built-in programmable scenes and programs, launched automatically at DMX signal interruption.
CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
