DMX Equipment

Description

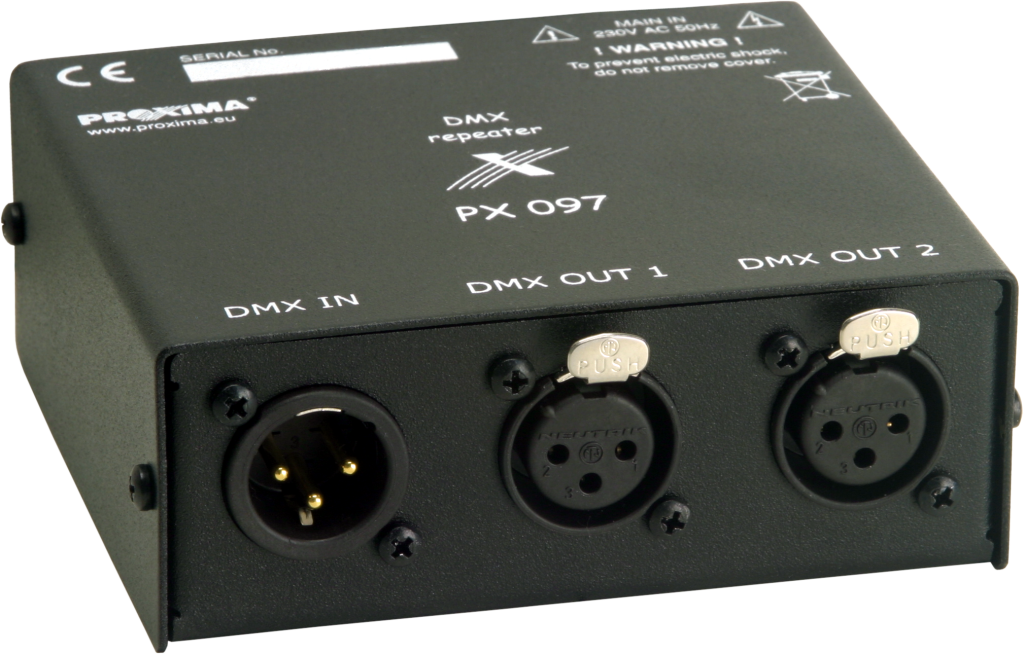

DMX signal repeater and 2-line splitter. Allows to connect another 32 DMX receivers and lenghten the DMX line. The device has an optical isolation between input and both outputs.
Version in metal casing.

Technical data

DMX IN/OUT channels512/512
DMX IN/OUT lines1/2
DMX lines connectors3-pin XLR sockets
isolation between input and outputs> 5000 V
power supply230 V / 50 Hz
weight1 kg
dimensions103 x 92 x 40 mm
