Description

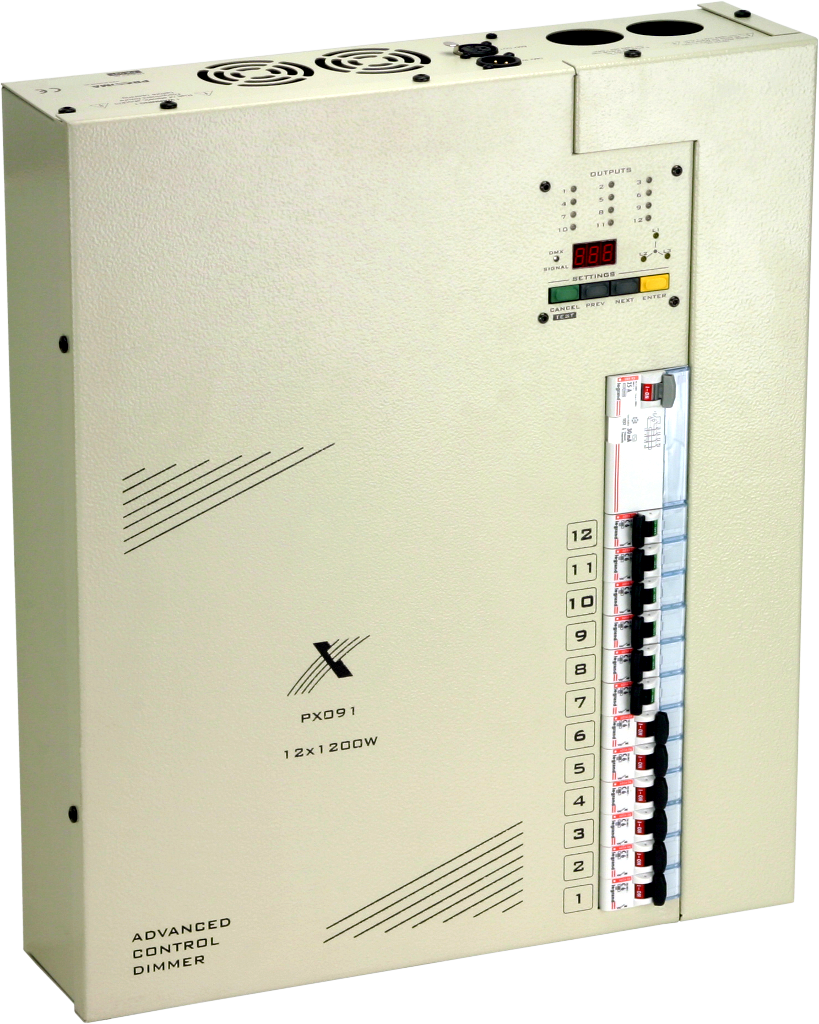

12-channel digital dimmer, 6 A per channel.

• Flat case for wall installation.
• Optically isolated DMX-512 input.
• Output panel: clamping screws.
• Patching functions for each channel.
• Programmable voltage limiter for each channel.
• Built-in 8 brightness curves.
• Programmable preheat.
• Short-circuit protection.
• Overvoltage protection.
• Built-in programmable chasers (2) and scenes (3).
• Three-colour LEDs
• Load-break detection.
• Programmable behaviour on DMX signal interruption.
• Constant power line voltage and inside temperature measurement.
• Built-in control systems for: "PLL"; "soft-start"; "soft-on"; "even-off"
• User password for settings protection.
• 230 V single or three phase 40 - 70 Hz.

CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
