Description

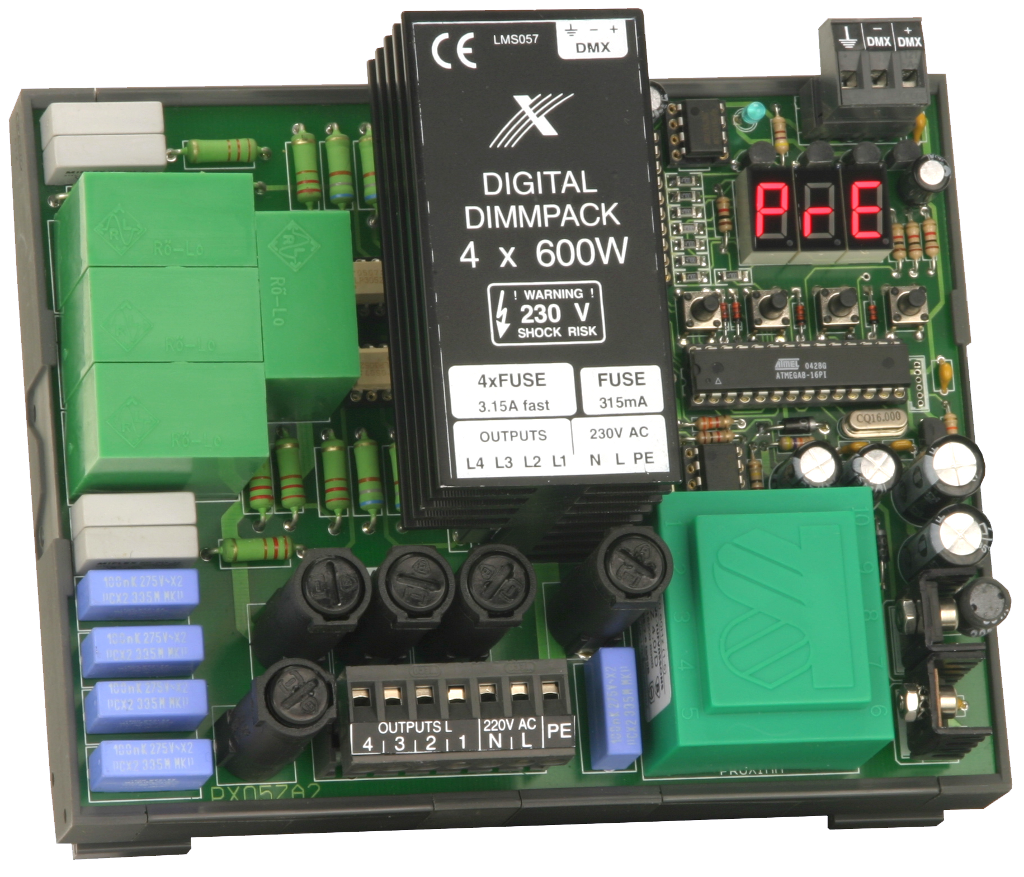

Professional digital dimmer for fixed installations.

• 4 channels 600 W each
• built-in noise suppression circuit, control lights for input signals and fuse blow
• control input: DMX-512

Programmable parameters for all channels:

• DMX start address for first channel (the addresses of next channels are given automatically)
• control characteristics - one of eight brightness curves
• ACL - voltage limiter (from 50 V to 230 V)
• PREHEAT - bulb preheating (0 - 10%)
• behaviour on DMX signal interruption (full on, off, dimm, one of 3 scenes, one of 2 chasers, last value)

Programmable parameters for each channel:

• DMX address (from 1 to 512)
• one of eight control characteristics (brightness curves)
• voltage limiter (50 V - 230 V)
• three scenes and two chasers programmable
• assembled in electrical switching stations on 154 mm wide DIN rails
• dimensions: 118,5 x 150,5 x 82 mm

CAUTION!
THE DEVICE IS OUT OF PRODUCTION!
